- LIGHT E-MOUNTAIN BIKE THANKS TO A LIGHTWEIGHT CARBON FRAME AND THE FAZUA RIDE 60 E-DRIVE WITH 60 NM AND 430 WH BATTERY
- 160 MM TRAVEL FOX RHYTHM 29 E-BIKE SUSPENSION FORK AND 150 MM FOX DPS REAR SHOCK WITH F.O.L.D. KINEMATICS
- RELIABLE AND PRECISE SHIMANO XT 1X12 SHIFTING COMPONENTS AND STRONG MAGURA MT5 BRAKES PLUS FULLY INTEGRATED C.I.S. CABLE ROUTING
- MAXIMUM ASSISTANCE UP TO 45KM/H
MERGES THE BEST OF TWO WORLDS
NIMBLE AND LIGHT PURE BIKE CHARACTERISTICS

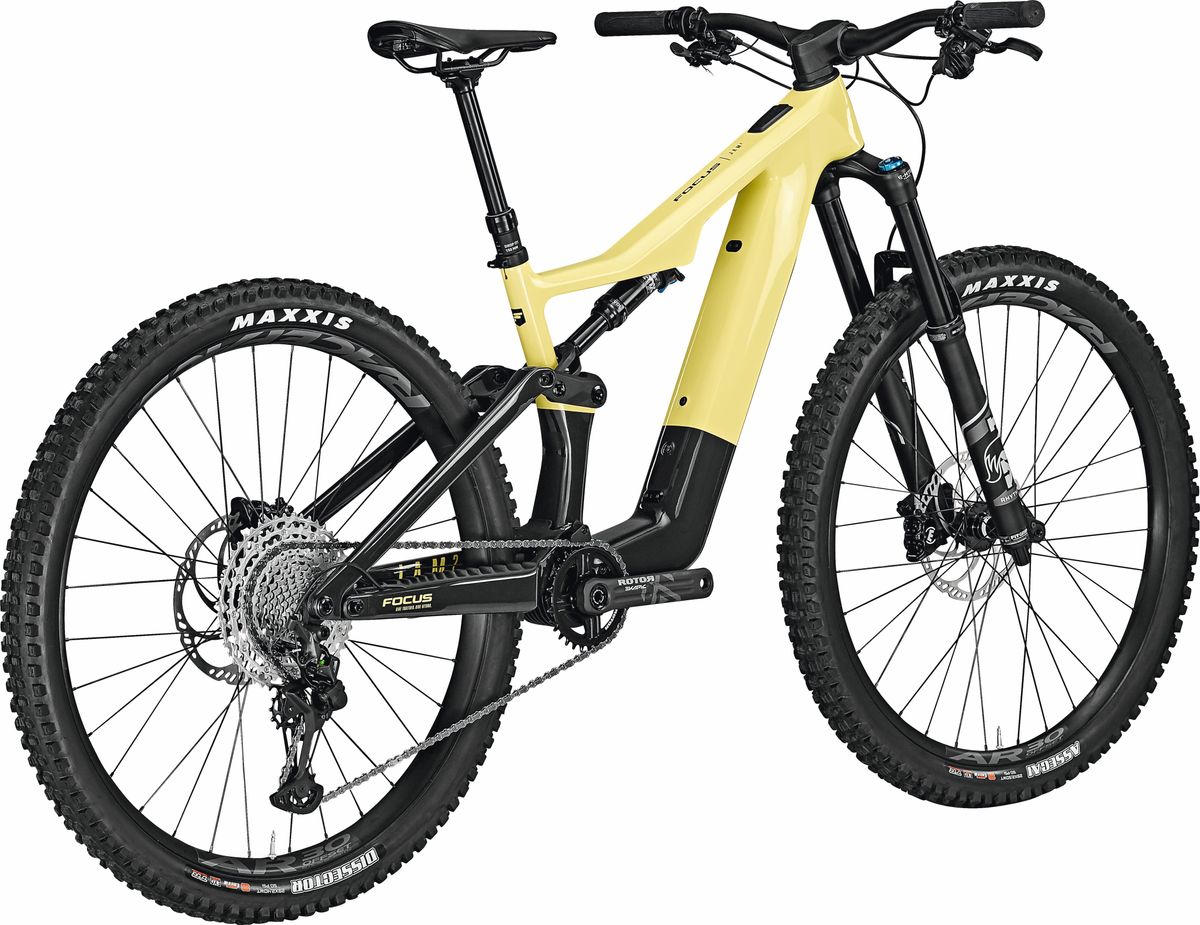

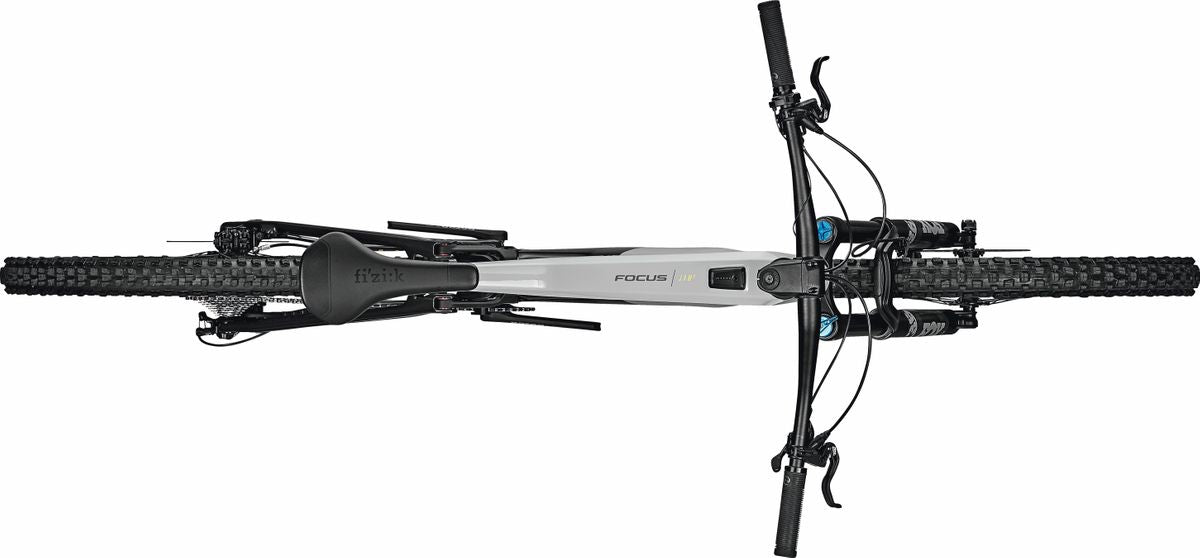

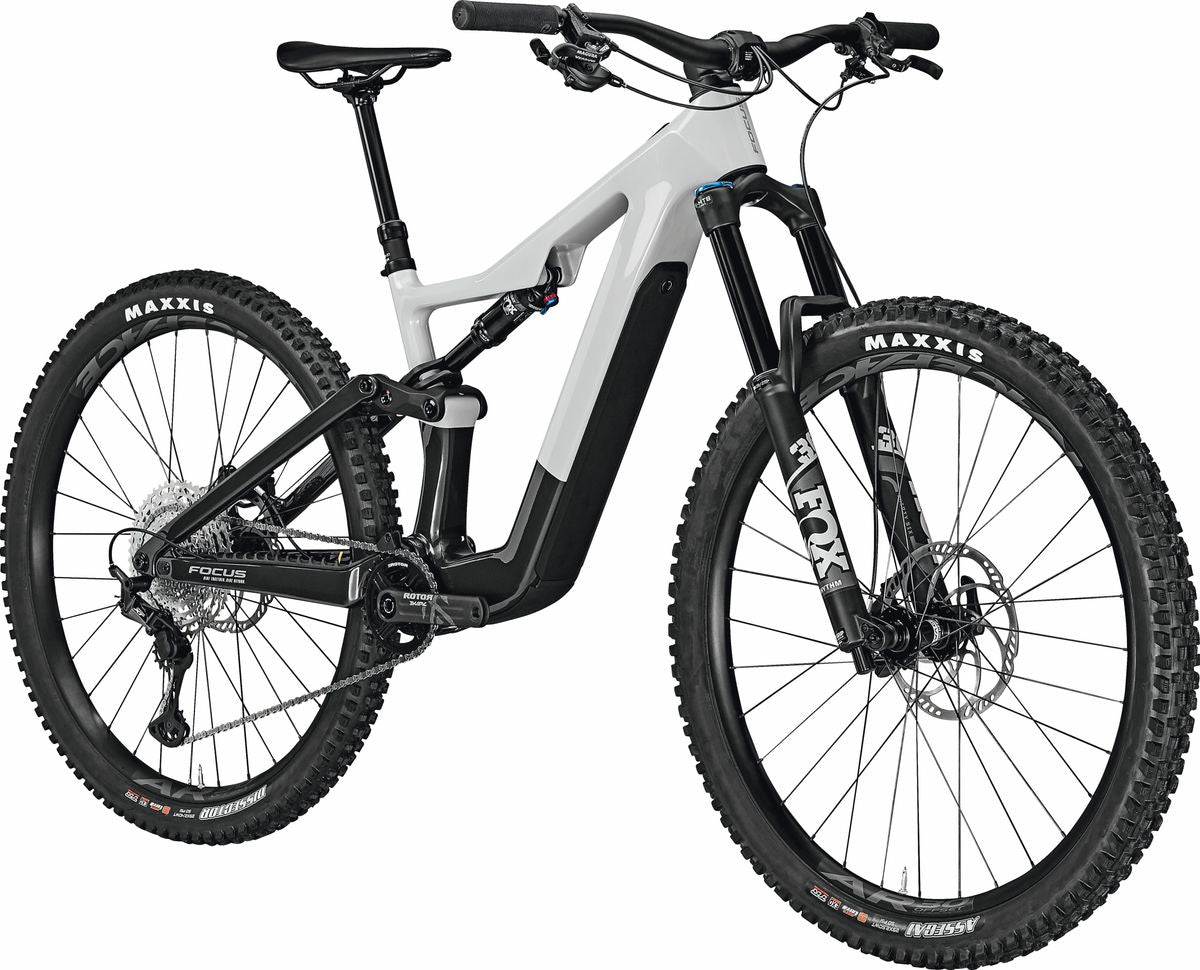

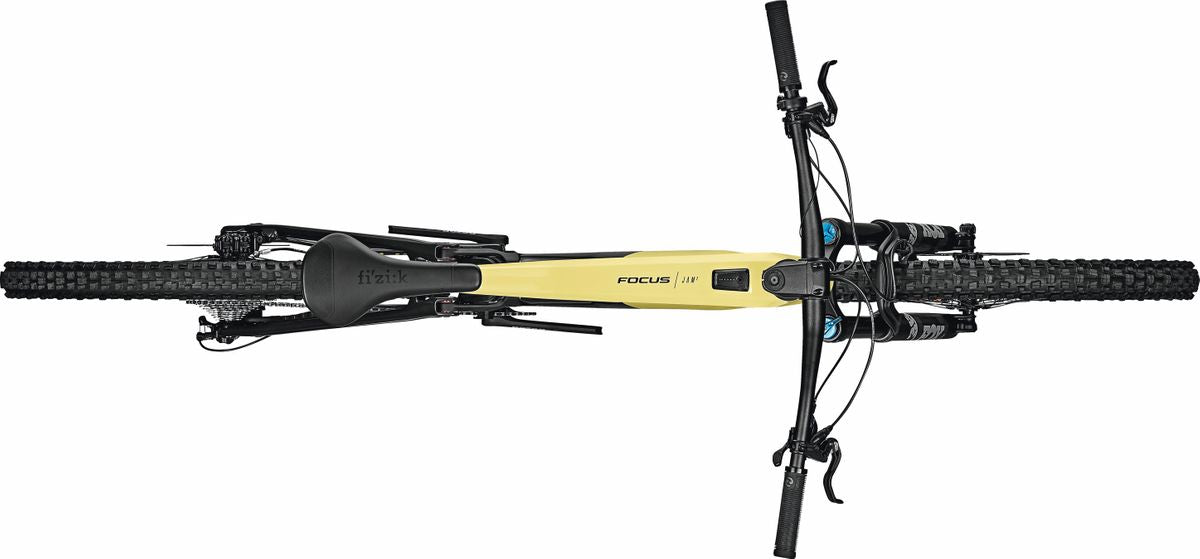

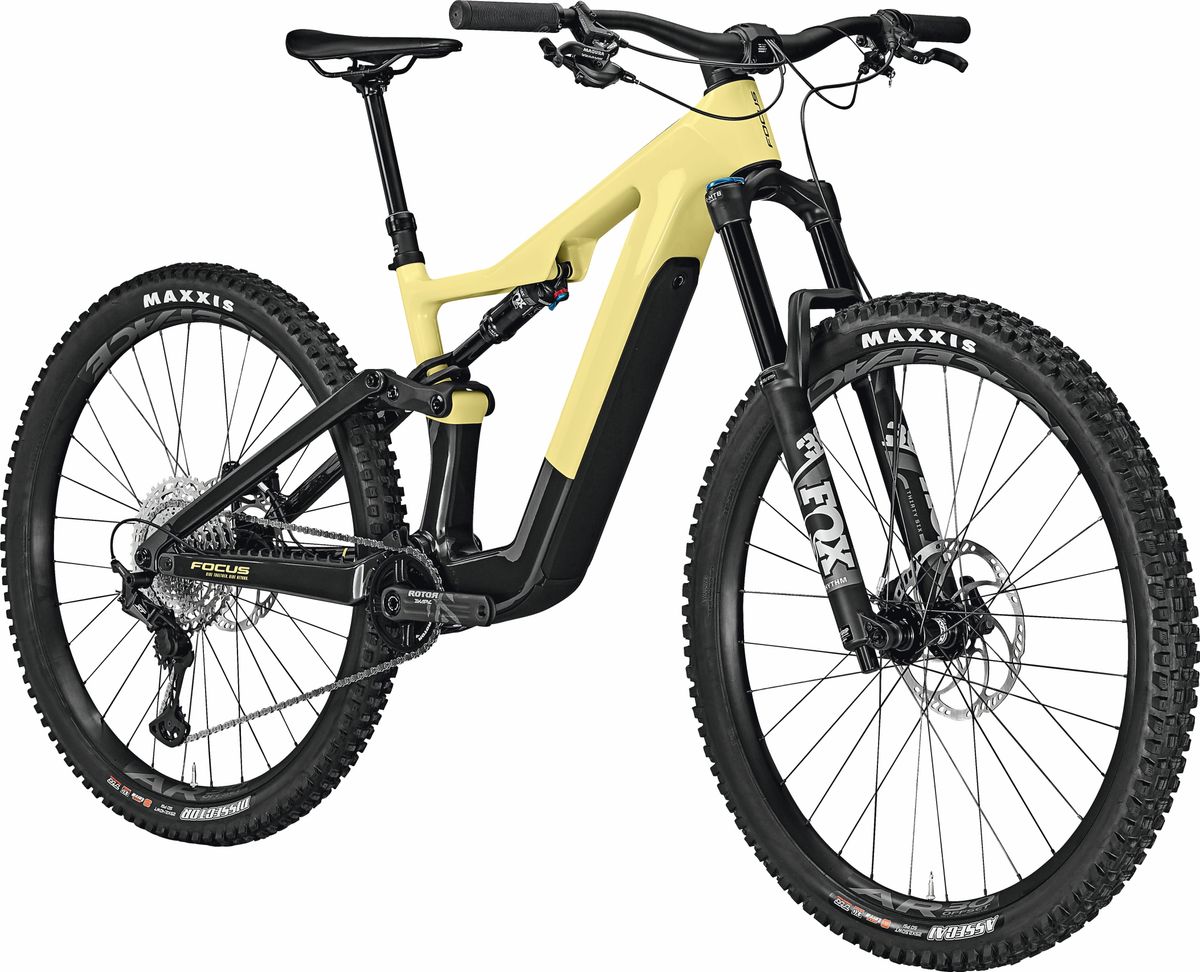

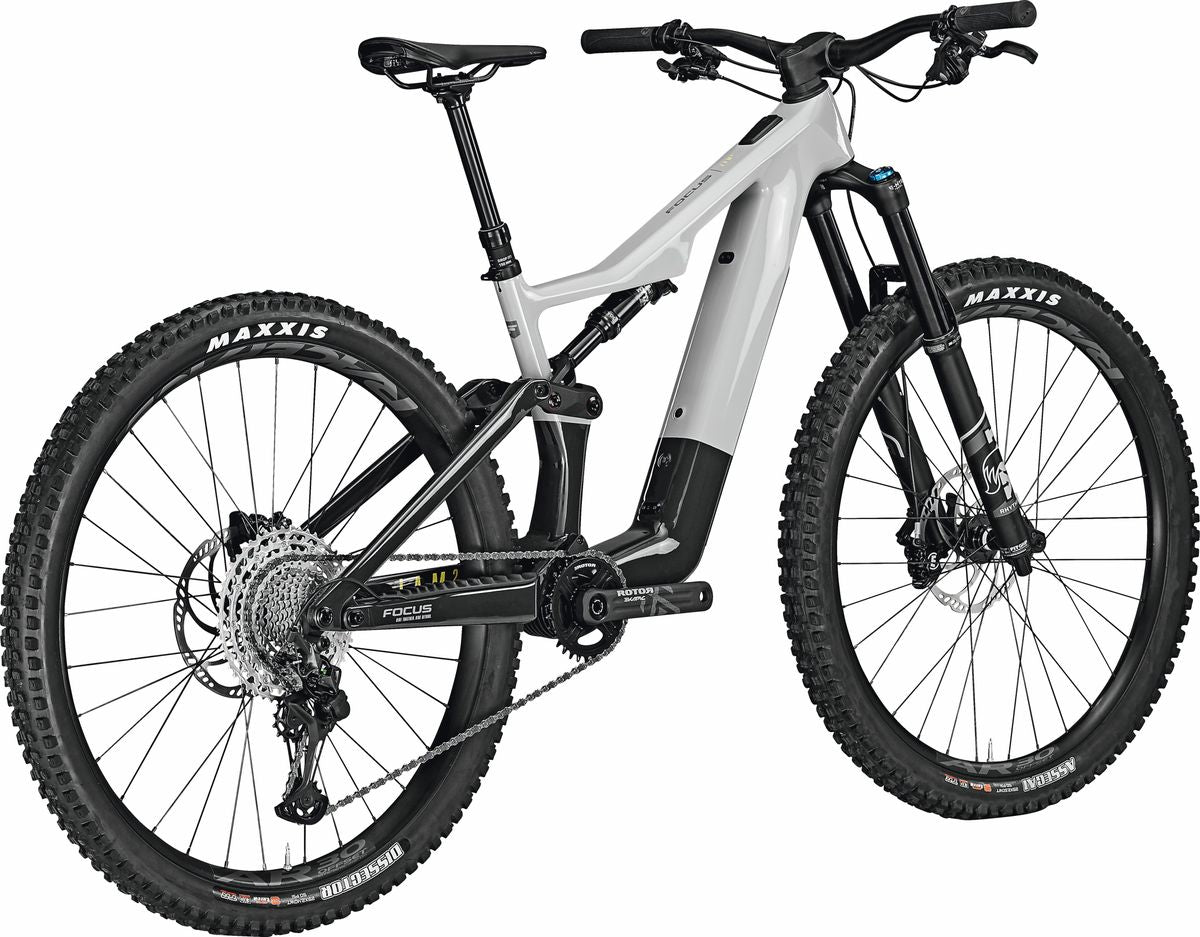

The JAM² SL 8.8 is the perfect light e-MTB for people who want the best price-performance ratio. The full-carbon frame optimises the weight without compromising on stiffness and usability. The top tube is designed in the most radical and minimalist way. Thanks to the shock semi-integration, the JAM² SL 8.8 has a low stand-over height that gives you generous space for moving. Still, all parts to adjust your shock settings are easy to reach. As the motor and battery of our JAM² SL 8.8 are fully integrated in the down tube, this e-MTB not just rides but also looks like a pure bike.
SUPPORT POWER OF AN E-BIKE
The FAZUA Ride 60 drive unit provides the feeling of a natural ride but still has got your back on all climbs. The compact and light, yet powerful system has 60 Nm torque and a maximum power output of 450 W. If you need an extra push, the boost function helps you to tackle even the steepest sections. Thanks to the high efficiency of the FAZUA system and a battery with 430 Wh, your ride won't stop before reaching your very own Rider's High. If you really need even more, adding a range extender offers you further 210 Wh. The drive system already features three different riding modes. On top, you can individualize the motor support based on your riding preferences via the FAZUA App. It allows you to set Max Power, Support Relation and Ramp-up according to your own personal needs.
ADJUSTABLE GEOMETRY AND ADAPTED KINEMATICS
The JAM² SL 8.8 features two points to adjust your geometry: the head angle and the chainstay length. The steeper head angle of 65,5° results in a more agile handling of the bike, while the slack position of 64,5° gives it a more downhill-oriented setting. Switching the FLIP CHIPs and adjusting your chainstay length from 440 to 447 mm changes the whole set-up of your bike. With longer chainstays, the JAM² SL 8.8 rides more stable and makes steep climbs easier, whereas the short setting leads to a more agile geometry. For the JAM² SL 8.8, we adapted our F.O.L.D. (FOCUS Optimised Linkage Design) and reduced the amount of linkage parts resulting in a significant weight loss. The updated kinematic design reduces brake influences and gives you maximum control of your bike in every situation.
| FRAME | Carbon technology frame, 150mm F.O.L.D. GEN3 kinematics, 148x12 thru axle, internal cable routing, Post Mount 180 mm |
| FORK | FOX 36 Float Rhythm 29 E-Bike, Grip, 110 x 15 mm, 44 mm rake |
| TRAVEL OF SUSPENSION FORK | 160 mm |
| SHOCK | FOX Float DPS, 3-position lever, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing |
| MOTOR | Fazua Ride 60, 60 Nm, 430 W max. |
| BATTERY WATT-HOURS | 430 Wh |
| BATTERY AMPERE HOURS | 10 Ah |
| DISPLAY | Fazua LED Hub + Ring Control |
| SHIFTER | Shimano Deore XT M8100, 12-speed |
| REAR DERAILLEUR | Shimano Deore XT M8100, 12-speed |
| SPROCKET | Shimano Deore CS-M6100, 12-speed |
| CHAIN | Shimano Deore CN-M6100, 12-speed |
| CRANKSET | Rotor eKAPIC RF Link 29 |
| TRANSMISSION OF DRIVE | Front: 32T, Rear: 10-51T |
| BOTTOM BRACKET | Integrated in Drive Unit |
| HANDLEBAR | Aluminium, 800 mm, rise: 30 mm, backsweep: 9° |
| STEM | FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium |
| HEADSET | ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated, 1.5/1.5" angle headset |
| SADDLE | fi'zi:k Taiga |
| SEATPOST | Post Moderne dropper post PM-MT171, 31.6 mm |
| BRAKE CALIPER | Magura MT5 |
| BRAKE LEVER | Magura MT5 |
| BRAKE | Disc |
| RIMS | RaceFace AR30 Offset |
| REAR HUB | Novatec D462, 12x148 mm |
| FRONT HUB | Novatec D041, 15x110 mm |
| FRONT TIRE | Maxxis Assegai, 2.5, 3C MaxxTerra Exo TR, 63-622 |
| REAR TIRE | Maxxis Dissector 2.4, WT 3C MaxxTerra Exo TR, 61-622 |
| GEARS | 12 |
| BIKE WEIGHT INCL. BATTERY IN KG | 19.7 |
| SIZE | S, M, L, XL |
Speed limit for e-support in New Zealand is 45 km/h. Our Fazua Motor and Battery e-bikes are adjusted accordingly.
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
