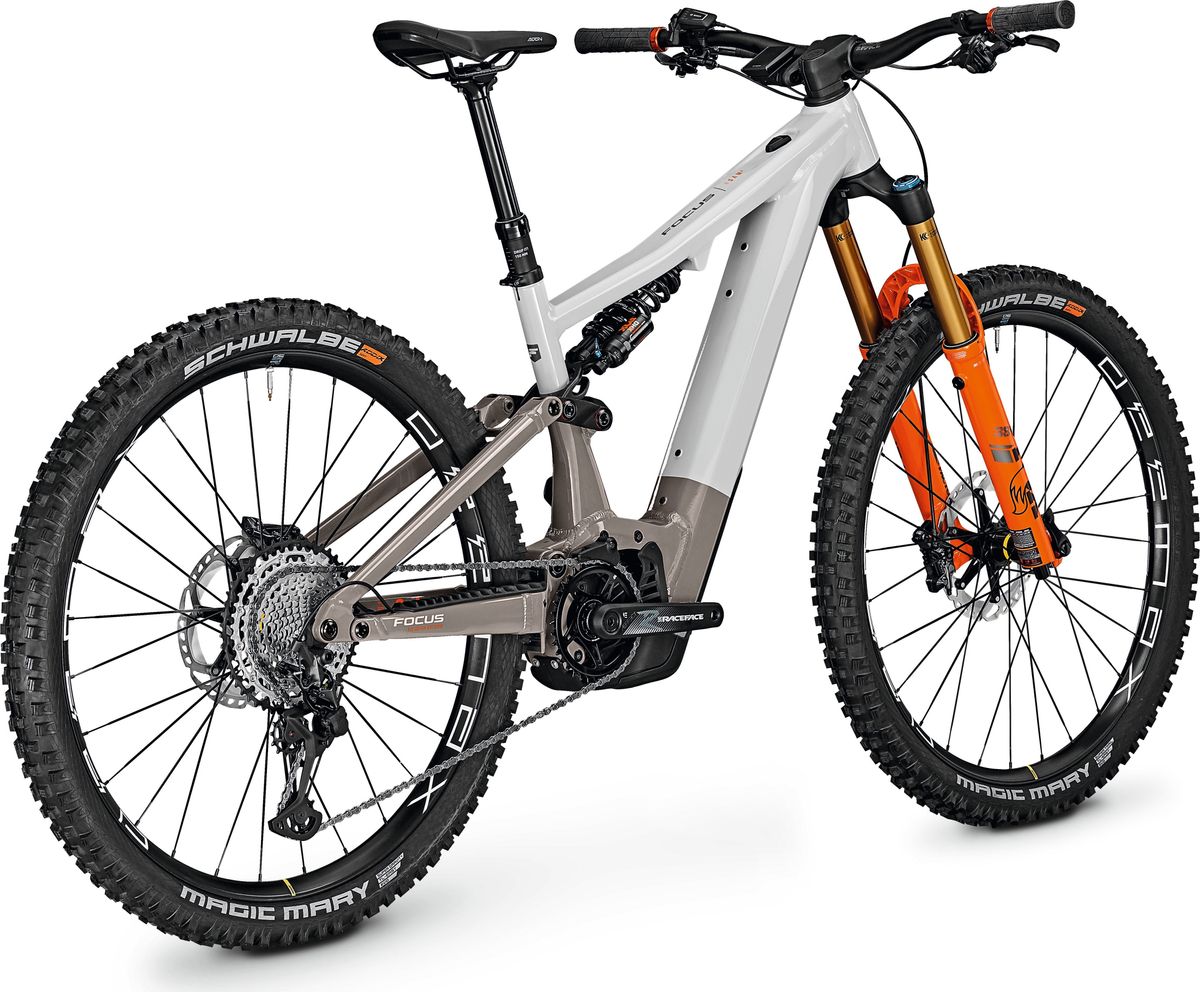

2023 Focus SAM2 6.9 BOSCH

• BOSCH SMART SYSTEM WITH PERFORMANCE CX E-DRIVE AND KIOX 300 DISPLAY PLUS 750 WH BATTERY
• 180 MM TRAVEL FOX 38 FACTORY SUSPENSION FORK AND 170 MM F.O.L.D. KINEMATICS WITH FOX DHX COIL REAR SHOCK
• FULLY INTEGRATED C.I.S. CABLE ROUTING WITH RELIABLE PRECISE SHIMANO XT 1X12 SHIFTING, STRONG XT 4-PISTON BRAKES AND MAVIC E-DEEMAX 30 WHEELS

DESIGNED FOR DOWN

SUPER POWERFUL AND DYNAMIC BOSCH PERFORMANCE LINE CX E-DRIVE

Thanks to the efficient Bosch Performance Line CX system, you can ride more trails in the same time. The powerful e-drive with a torque of up to 85 Nm makes sure uphill with the FOCUS SAM² 6.9 is fun as well. Even though the motor has got your back on climbs, you can still easily control your full-suspension bike, also in toughest conditions. The slide-out battery with 750 Wh can be charged via the integrated charging port at the bike’s seat tube. Alternatively, you can also remove the battery easily and fast. There is no need for any tools. Just unlock the buckle and open the cover to slide out the battery.

BIKE DESIGN FOR OPTIMAL PERFORMANCE IN ANY SITUATION

Thanks to the long wheelbase and slack head angle, the FOCUS SAM² 6.9 rides super stable even at high speed in roughest terrain. It has a perfect stiffness-to-weight ratio because the slide-out battery only requires a minimal cut-out in the down tube. Further, the battery is placed as low as possible into the down tube. This frame design improves the bike's centre of gravity and makes this e-MTB more stable on descents. The low stand-over height gives you generous space for moving and enables you to handle your bike perfectly in technical terrain. By turning the headset cups, you can easily change the head angle of your FOCUS SAM² 6.9 according to your riding preferences from 64.5° to 63.5°.

MADE FOR THE ROUGHEST TRAILS

The kinematics of our FOCUS SAM² 6.9 is made for the roughest rides. Our upgraded F.O.L.D. (FOCUS Optimised Linkage Design) is the core component of this bike and optimised for its purpose. It allows the integrated coil shock to work best. With 180/170 mm travel, a suspension fork with 38 mm stanchions and fast 29" wheels, the FOCUS SAM² 6.9 is ready to shred. You can always rely on strong Shimano brakes with Ice Technologies that reduce heat from the brake system. Thanks to the sturdy alloy wheelset, you can smash through rock gardens, hit jumps, and send gaps at full speed.

FRAME	7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. Gen2, 148x12 mm thru axle, internal cable routing, post mount 203 mm
FORK	FOX 38 Factory Float 29, Grip 2, E-Bike+, 110x15 mm, 44 mm rake
TRAVEL OF SUSPENSION FORK	180 mm
SHOCK	FOX DHX Performance Coil, 230/65 mm, hardware: 20,0 x 8.0 mm
MOTOR	Bosch Performance CX Smart, 85 Nm, 250 W
BATTERY WATT-HOURS	750 Wh
BATTERY AMPERE HOURS	20.8 Ah
DISPLAY	Bosch LED Remote + Kiox 300
SHIFTER	Shimano Deore XT M8100, 12-speed
REAR DERAILLEUR	Shimano Deore XT M8100, 12-speed
SPROCKET	Shimano SLX M7100, 12-speed
CHAIN	Shimano SLX CN-M7100, 12-speed
CRANKSET	Samox EC40 ISIS
TRANSMISSION OF DRIVE	Front: 36T, Rear: 10-51T
BOTTOM BRACKET	Integrated in Drive Unit
HANDLEBAR	RaceFace Atlas 35, aluminium, 820 mm, rise: 35 mm, backsweep: 8°
STEM	FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
HEADSET	ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset
SADDLE	Fizik Terra Aidon
SEATPOST	Post Moderne dropper post PM-214, 34.9 mm
BRAKE CALIPER	Shimano XT M8120, 4 piston
BRAKE LEVER	Shimano XT M8120, 4 piston
BRAKE	Disc
WHEELSET	MAVIC E-DEEMAX 30, 622-30, 148x12 mm / 110x15 mm
FRONT TIRE	Schwalbe Magic Mary, 2.6 Super Trail Soft, 65-622
REAR TIRE	Schwalbe Magic Mary, 2.6 Super Gravity Soft, 65-622
GEARS	12
BIKE WEIGHT INCL. BATTERY IN KG	26.6
SIZE	S, M, L, XL



Speed limit for e-support in New Zealand is 32 km/h. Our e-bikes are adjusted accordingly.

* Subject to technical modification without notice. Errors and omissions excepted.

** Weight in size M, of standard specification and without pedals.
