- AERO CARBON FRAME (1,050 G)
- SHIMANO 105 2X12 SHIFTING
- NOVATEC R4 CARBON WHEELS
MAKES YOU FASTER
AERO GAINS
The refined and wind tunnel-approved NACA-shapes (National Advisory Committee for Aeronautics) make our frame highly aerodynamic. At the same time, the frame only weighs 1050 g for frame size M with an additional 400 g for the fork. Our C.I.S. road stem hides the cables below the stem. It also comes with an integrated bike computer mount for both Wahoo and Garmin.

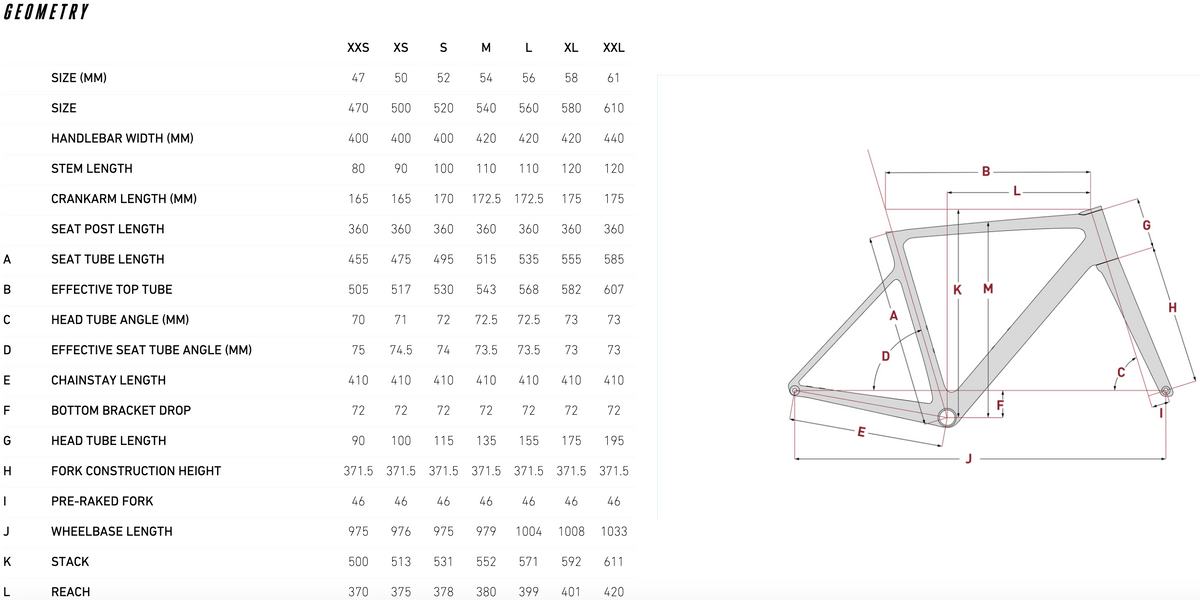

7 SIZES FOR A PERFECT FIT
The IZALCO MAX is available in seven sizes. In combination with the stem, which we offer in six lengths from 70 to 120 mm, it really does have all the sizes for each and every one of you.
EFFORTLESS HANDLING AND MAXIMUM STIFFNESS
To enable you to get that extra power on the road, the bottom bracket is optimised for stiffness, and the fork for lateral stiffness. Together with a bold geometry for easier cornering, especially at high speeds, the IZALCO MAX is the road bike for all ambitions.
SPECIFICATION
FRAME MATERIAL |
Carbon |
FRAME |
Carbon technology frame, disc, BB86, 142x12 mm thru axle, flat mount 160/140 mm, internal cable routing |
FORK |
MAX technology carbon, integrated cable routing, disc, 100x12 mm, flat mount
|
SHIFTER |
Shimano 105 R7100, 12-speed |
FRONT DERAILLEUR
|
|
REAR DERAILLEUR |
Shimano 105 R7100, 12-speed |
SPROCKET |
Shimano 105 R7100, 12-speed |
CHAIN |
Shimano Deore CN-M6100, 12-speed |
CRANKSET |
Shimano 105 R7100 |
TRANSMISSION OF DRIVE |
Front: 50/34T | Rear: 11-34T |
BOTTOM BRACKET |
Shimano Pressfit Road BB86 |
HANDLEBAR |
BBB Basic, aluminium
Drop: 125 mm, Reach: 70 mm |
STEM |
FOCUS C.I.S. 2.0 integrated, 31.8 mm, aluminium, with Garmin / Wahoo-Mount |
HEADSET |
ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S. |
SADDLE |
Selle Royal Groove SRX |
SEATPOST |
FOCUS Aero Carbon, D-shape, 350 mm
Set-back: 15 mm |
BRAKE CALIPER |
Shimano 105 R7025 |
BRAKE LEVER |
Shimano 105 R7025 |
BRAKE |
Disc |
WHEELSET |
Novatec R4, carbon, 21-622, front: 12x100 mm, rear: 12x142 mm
Height: 45 mm |
TIRES |
Vittoria Rubino TLR, 700 x 28C, Folding |
GEARS |
24 |
BIKE WEIGHT IN KG. |
8.85 kg |
SIZE |
XXS, XS, S, M, L, XL, XXL |
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
