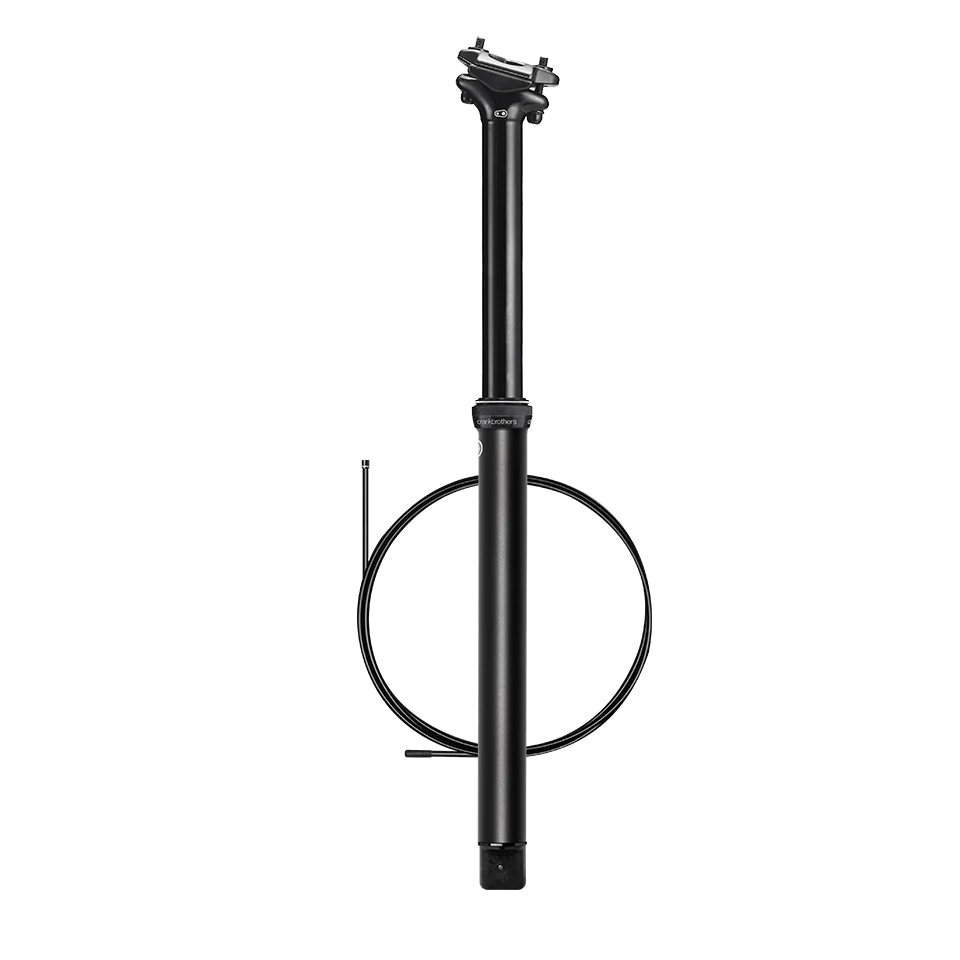

The all-new Highline delivers infinite adjustment, smooth feel, and easy installation for any bike.
- Premium Trelleborg® sealing
- Exclusive Igus® LL-glide bearings and keys
- Jagwire® cable and housing
- Self-contained hydraulic cartridge delivers industry leading quality and reliability
- Internal routing
- Quick connect mechanism for ease of cable installation
- Linear actuator for quick return speed
- 2-bolt standard head
- Remote sold separately
SPECS
| MIN. INSERTION LENGTH |
100mm |
| MAX. INSERTION LENGTH |
285mm |
| MAX EXTENDED LENGTH |
374mm |
| TOTAL POST LENGTH |
501mm |
| MIN STACK HEIGHT |
47mm |
| SETBACK |
0mm |
| MATERIAL |
7075-T6 aluminum |
| WEIGHT |
586gm (30.9mm)
609gm (31.6mm) |
| WARRANTY |
2 years |
