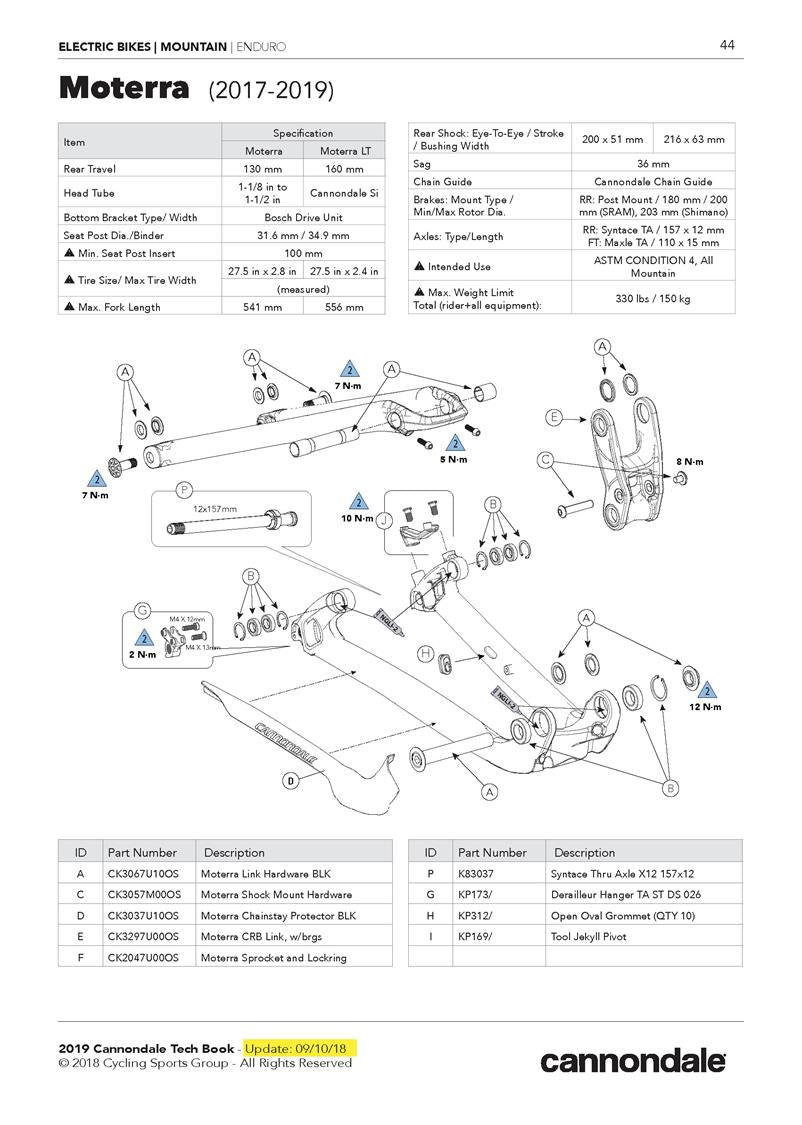

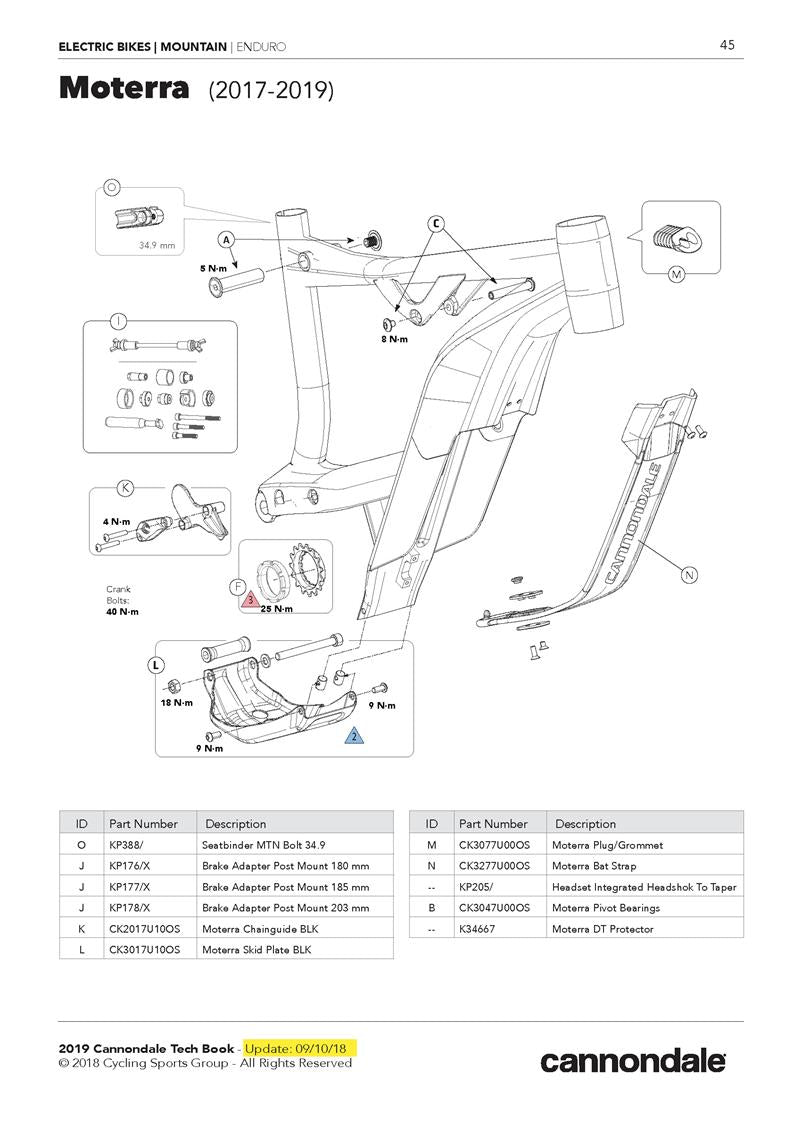

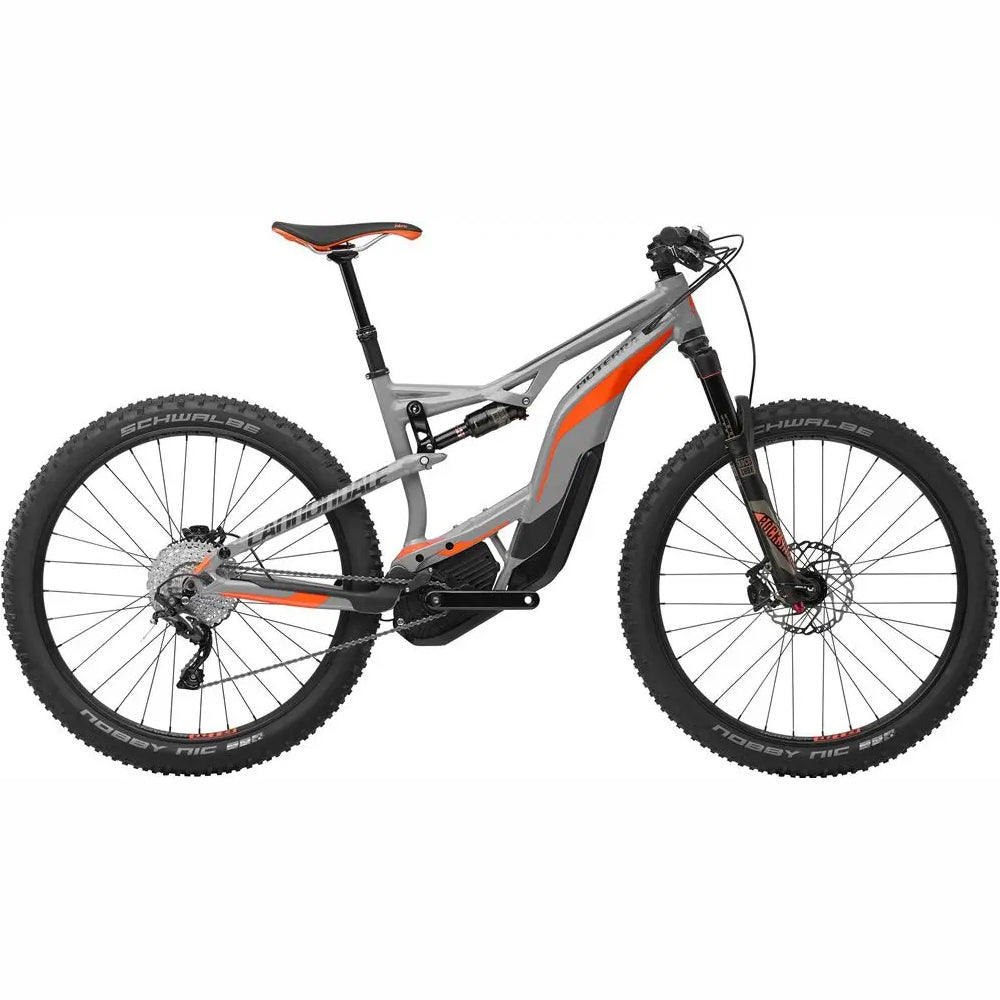

CANNONDALE MOTERRA 2017 - 2019 SPARES

SPECIFICATIONS

Rear Travel - 130mm LT - 160mm

Head Tube - UPR: 1-1/8" LWR: 1-1/2

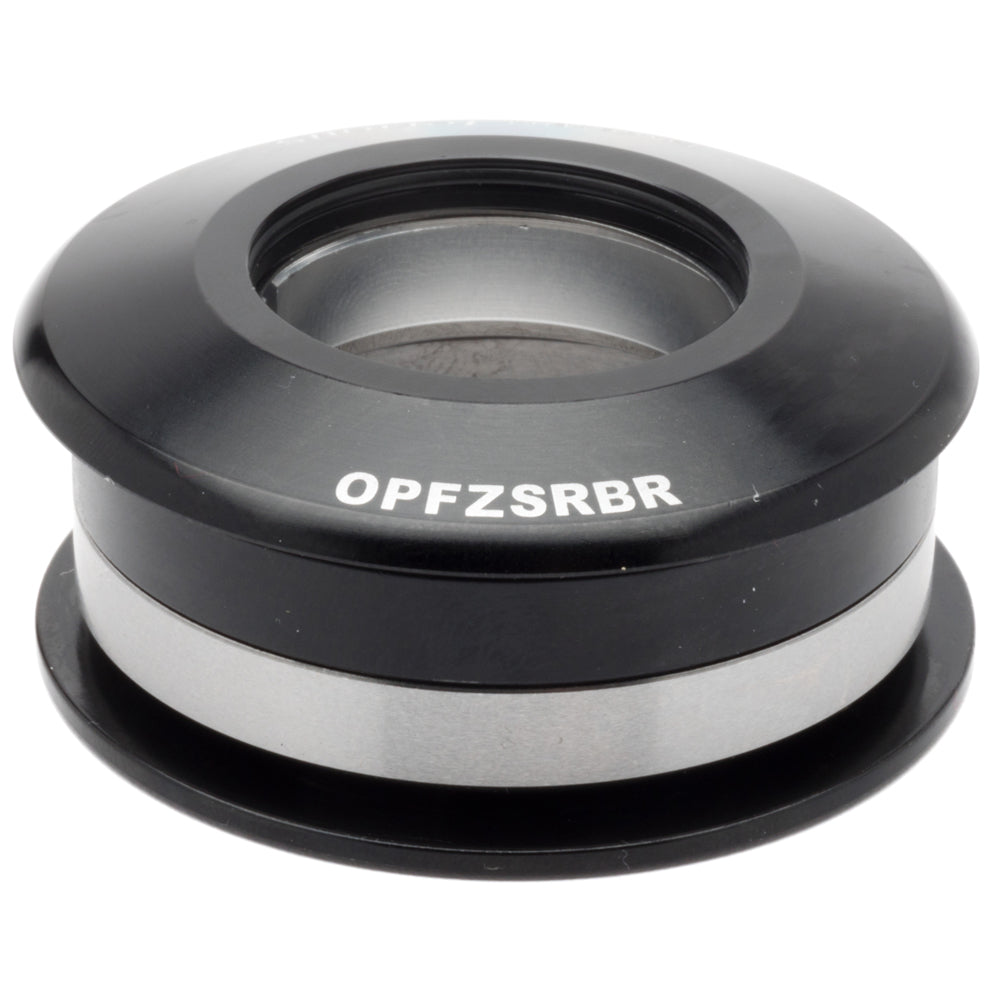

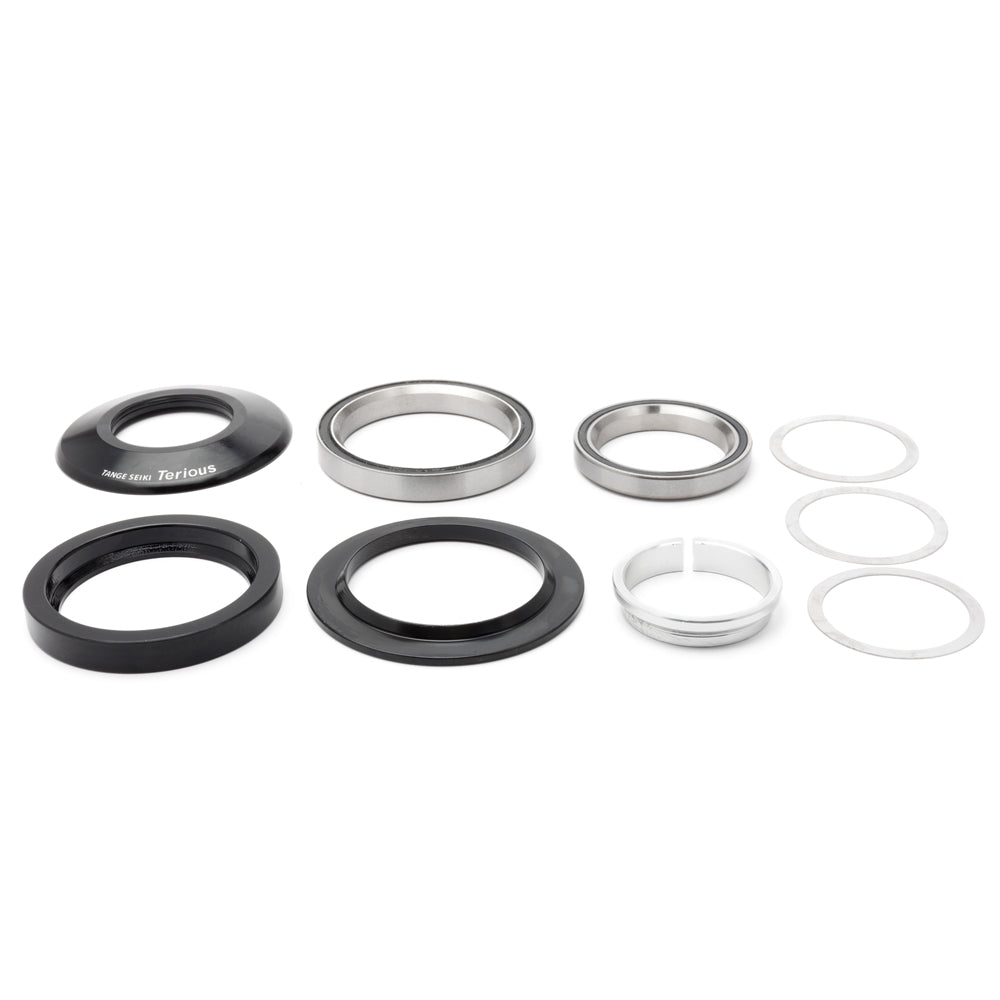

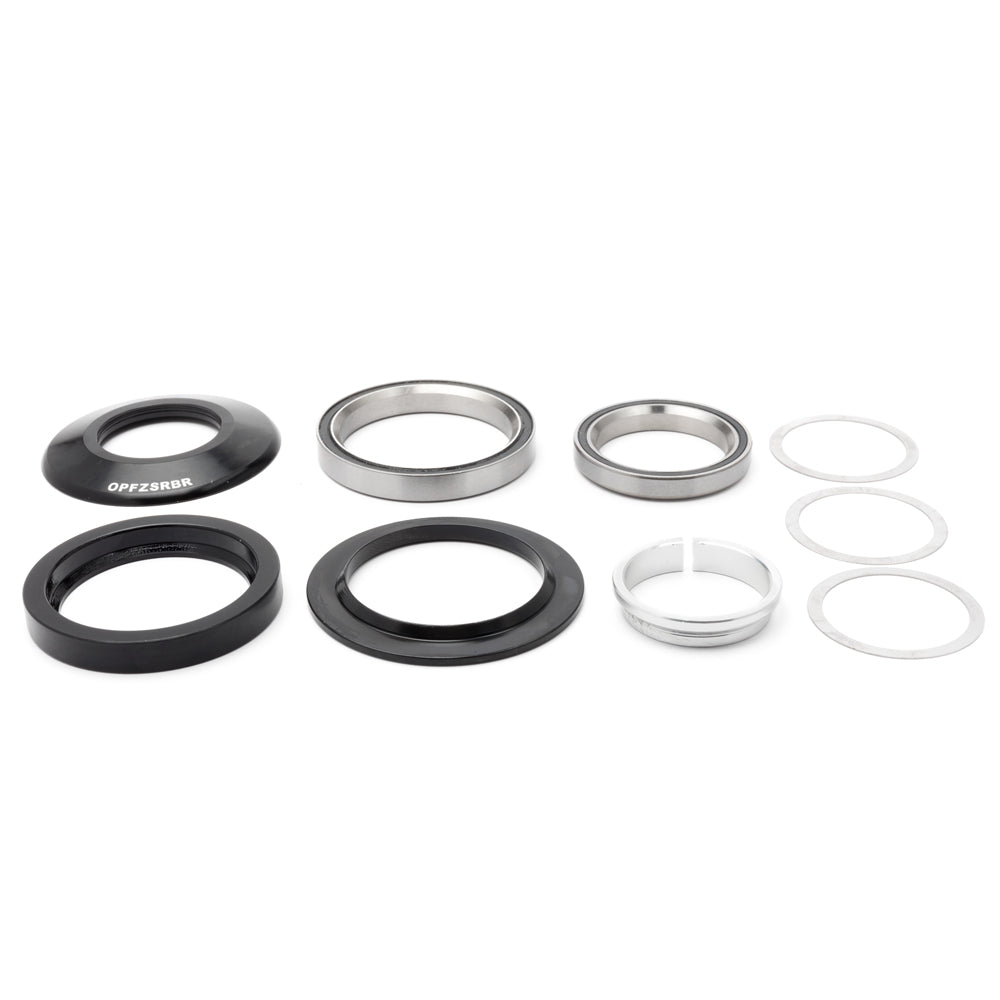

Headset - IS42 Top IS52 Bottom

Bottom Bracket: Type / Width - Bosch Drive Unit

Front Derailleur - N/A

Seat Post: Dia./Binder - 31.6mm/34.9mm

Minimum Seat Post Insert - 100 mm

Tyre Size x Maximum Width - 27.5 in x 2.8 in (LT - 27.5 in x 2.4 in)

Maximum Fork Length - 541mm (LT 556mm)

Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 200 x 51 mm T( LT 216 x 63mm)

Sag - 36mm

Brakes: Mount Type / Min / Max Rotor Diameter - Post Mount / 180mm / 203mm

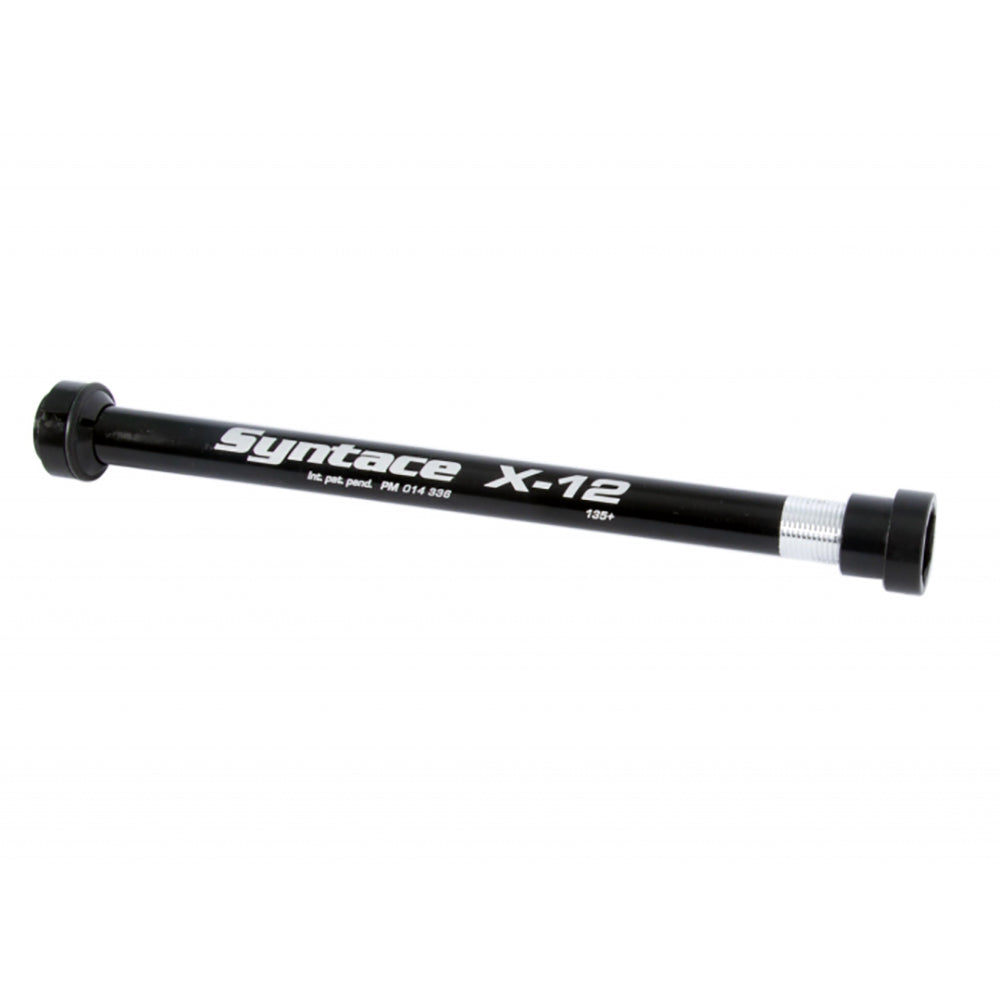

Axles: Type / Length - Syntace TA / 157 x 12 mm

Maximum Weight Limit: Total - 150kg
