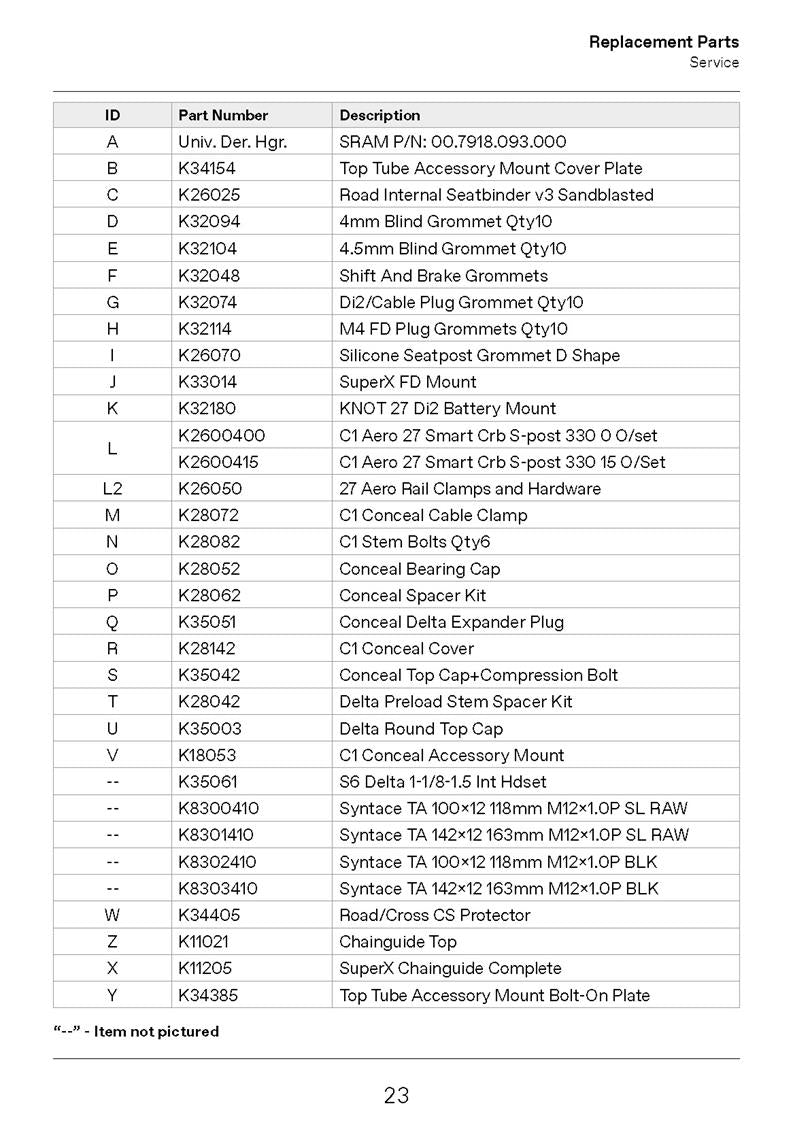

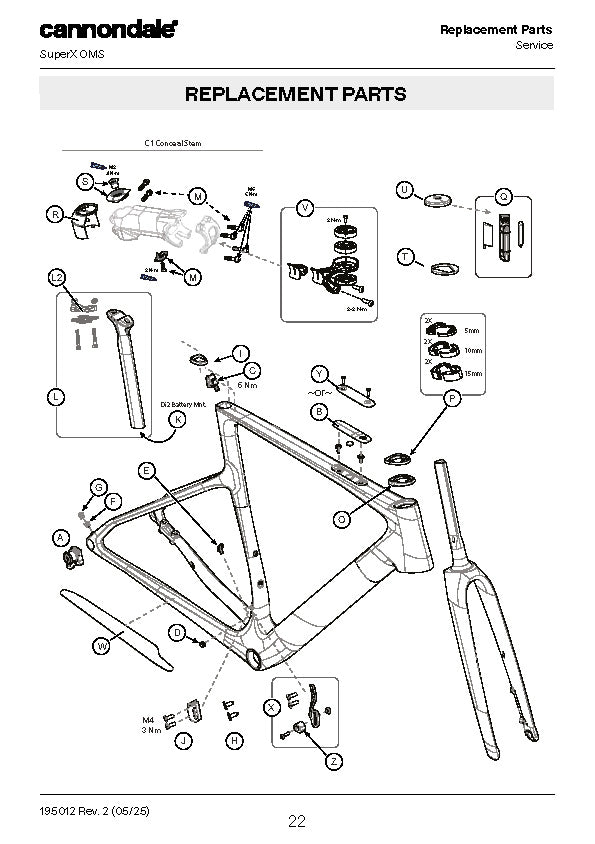

SUPERX SPARES 2025+

SPECIFICATIONS

Head Tube - Upper 1-1/8 in, LWR 1-1/2 in

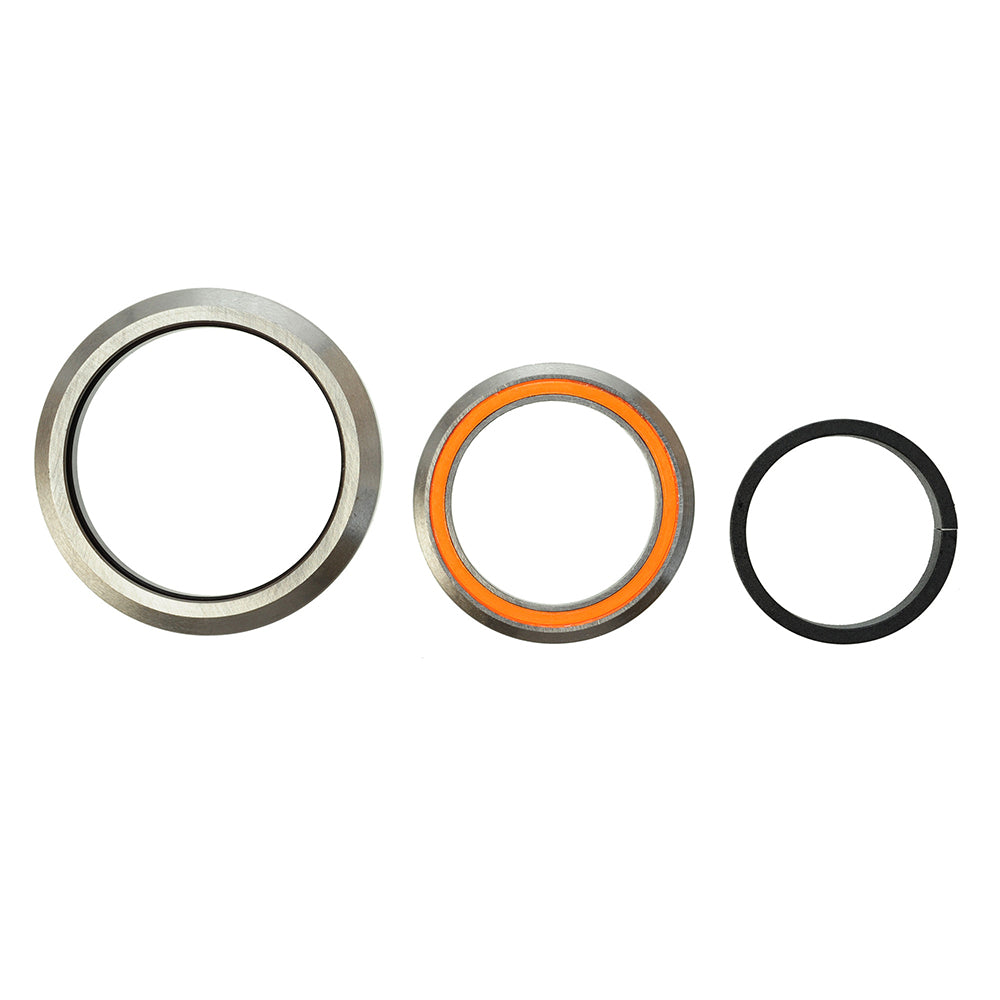

Headset Top - IS42/28.6 top, IS52/40 bottom 36 degree integrated crown race

Bottom Bracket: Type / Width - BSA Threaded/68mm

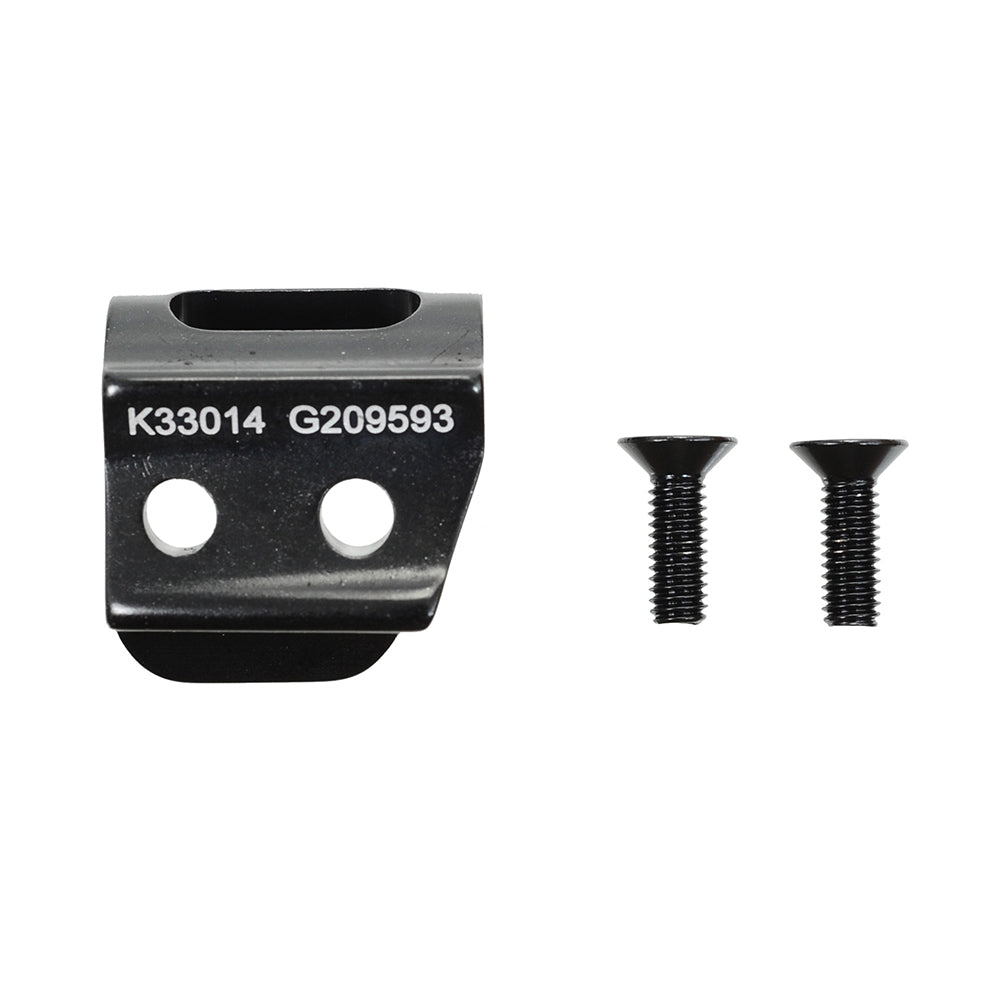

Front Derailleur - Braze-on

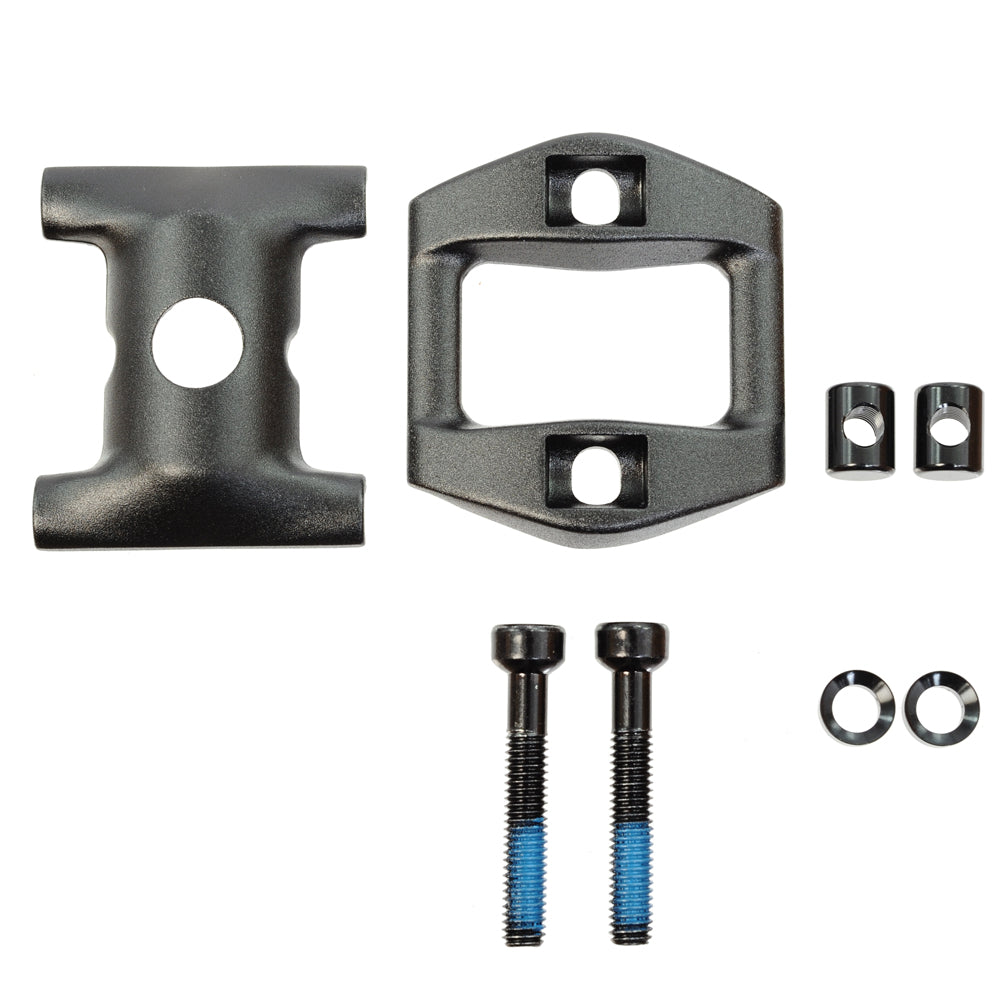

Seat Post: Dia./Binder - C1 27 Aero/Internal Wedge

Minimum Seat Post Insert - 65 mm

Maximum Seat Post Insert - 46cm/130mm, 51cm/161mm, 54cm/168mm, 56cm/173mm, 58cm/174mm 61cm/175mm

Tyre Size x Maximum Width - RR: 700c X 48mm (measured)
FORK: 700c X 51mm (measured)

Brakes: Mount Type / Min / Max Rotor Diameter - RR: Flat Mount/160mm/180mm FT: Flat Mount/160mm/180mm

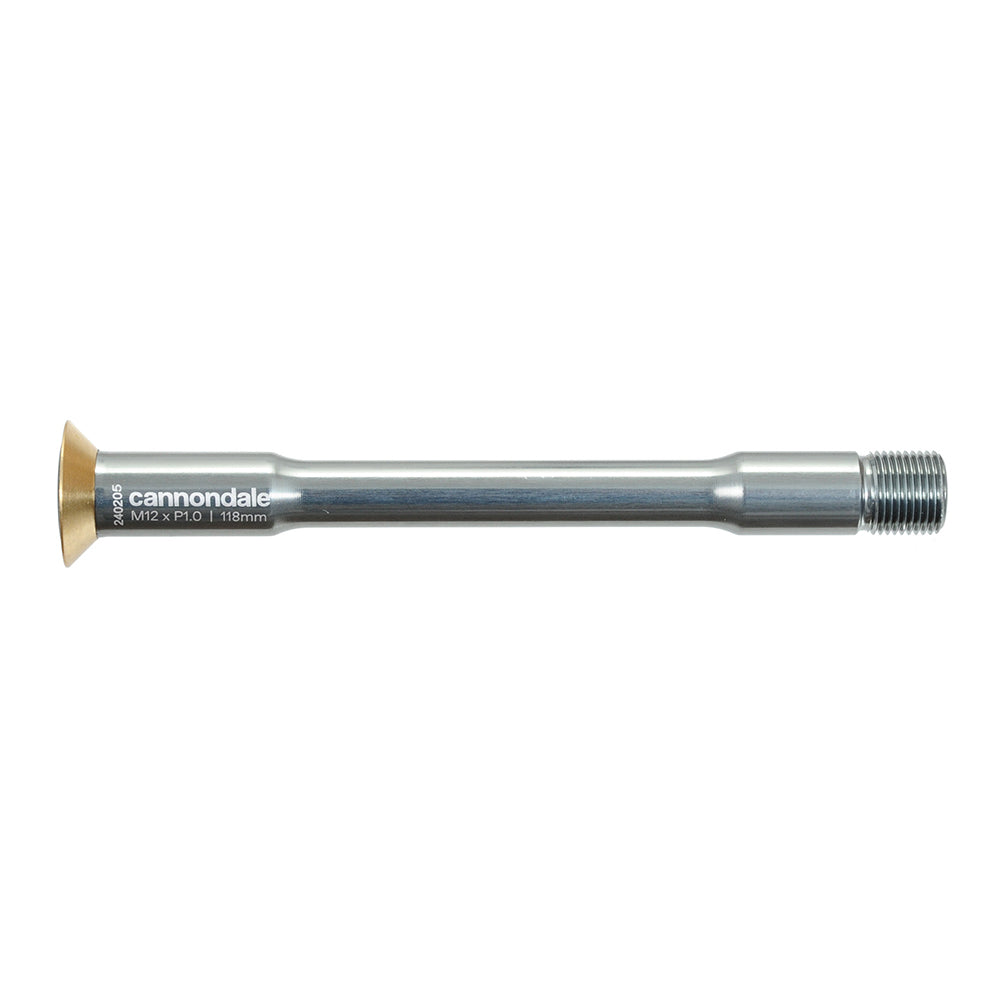

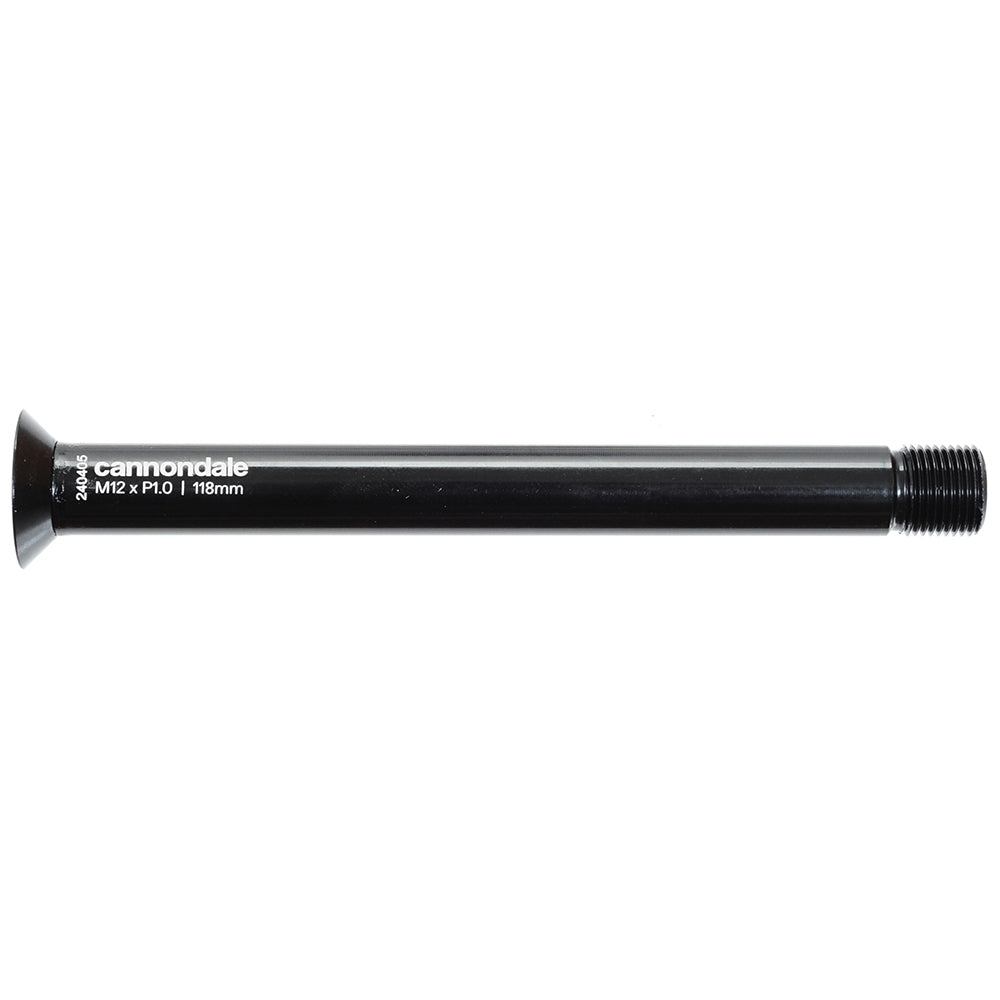

Axles: Type / Length - FT: 100x12, M12x1.0P, 118mm Overall

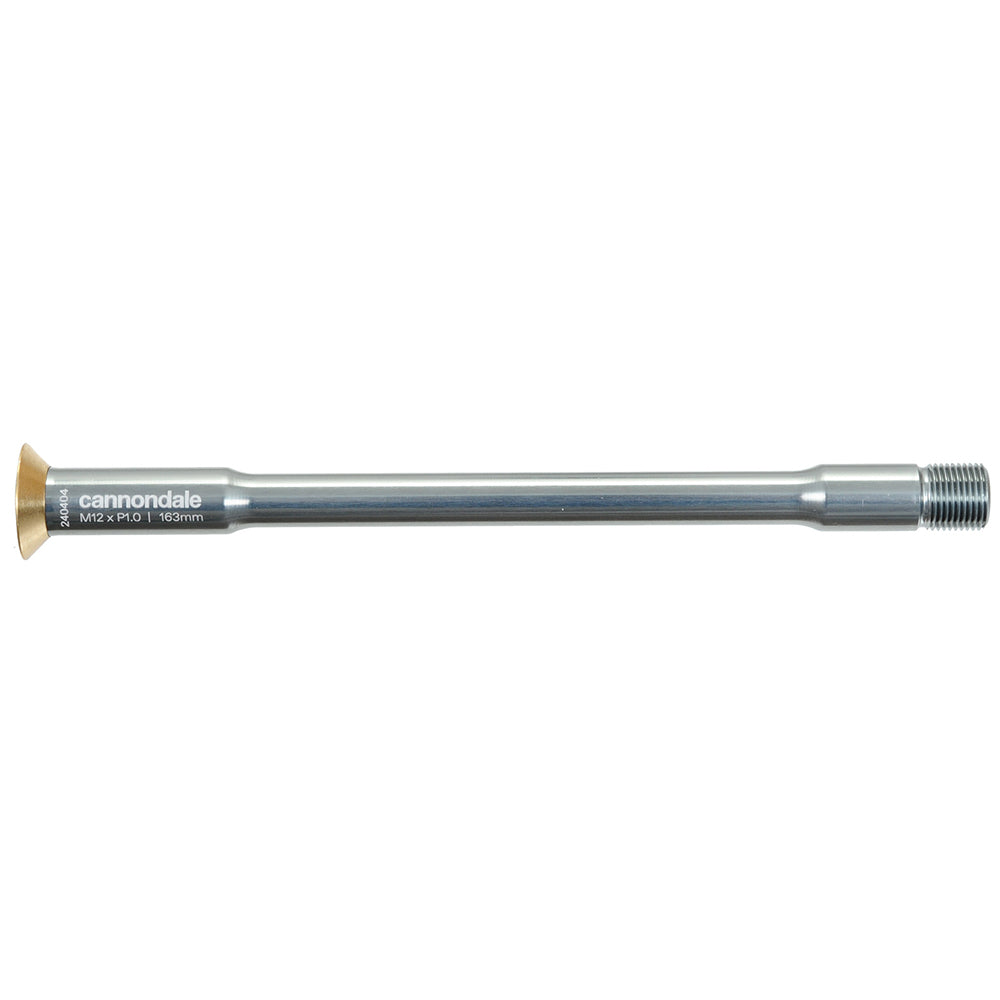

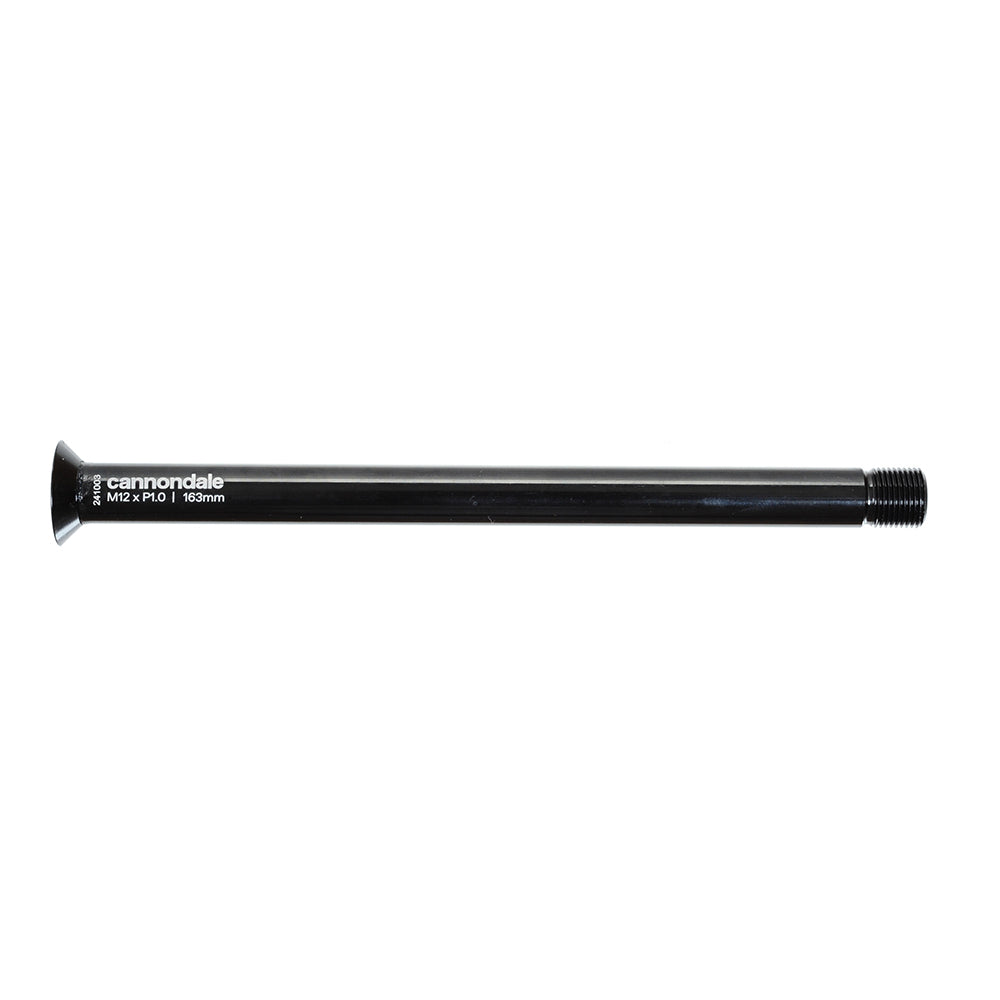

Length RR: 142x12, M12.1.0P, 163mm Overall
Length

Fork Offset - 55mm

Maximum Weight Limit: Total - 150kg
