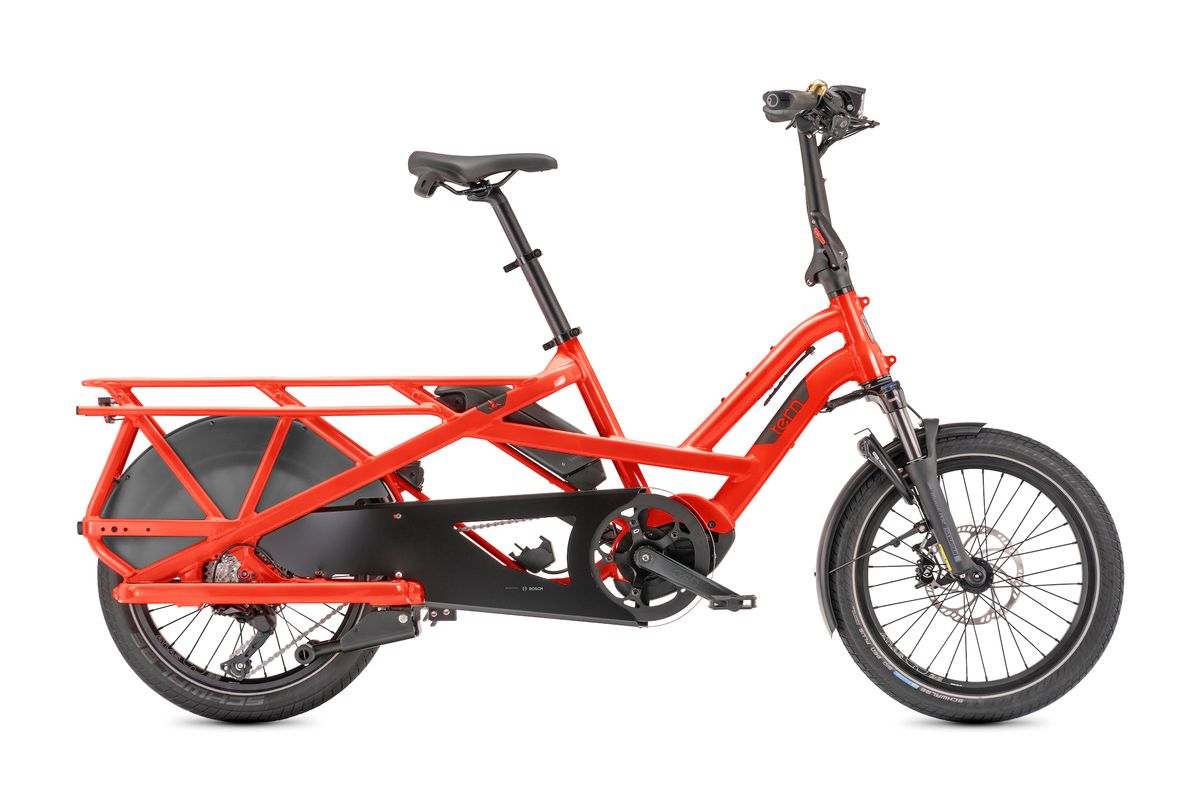

Tern GSD S10 Bosch Cargo Line 400w/h

$8,990.00 NZD
$8,990.00 NZD
Tax included.

STILL SMALL. EVEN MORE USEFUL.


STILL SMALL. EVEN MORE USEFUL



  • 200 kg Maximum Gross Vehicle Weight

  • Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support

  • Bosch dual-battery system (400/900 Wh) for a range of up to 195 km (extra battery sold separately by Bosch NZ)

  • Shimano® Deore 1 × 10-speed hub for smooth, efficient shifting

  • Adjustable cockpit comfortably fits riders 150 – 195 cm

  • Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock

  • Heavy-duty frame-integrated rear rack and integrated lower decks

  • Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes

  • Always-on RearStop™ Brake Light helps you safely signal stops

  • Integrated Abus® Wheel Lock, keyed-alike with the battery

  • Upgraded Atlas Wheels™ with custom CNC machined hubs for extra strength and durability

  • Wide range of cargo- and passenger-carrying accessories

  • Fits two Thule® Yepp Maxi seats, no adapters needed



GENERAL INFO

















































SPEEDS 1 x 10
WEIGHT 33.58 kg
GEAR INCHES 2.08 - 7.91 m

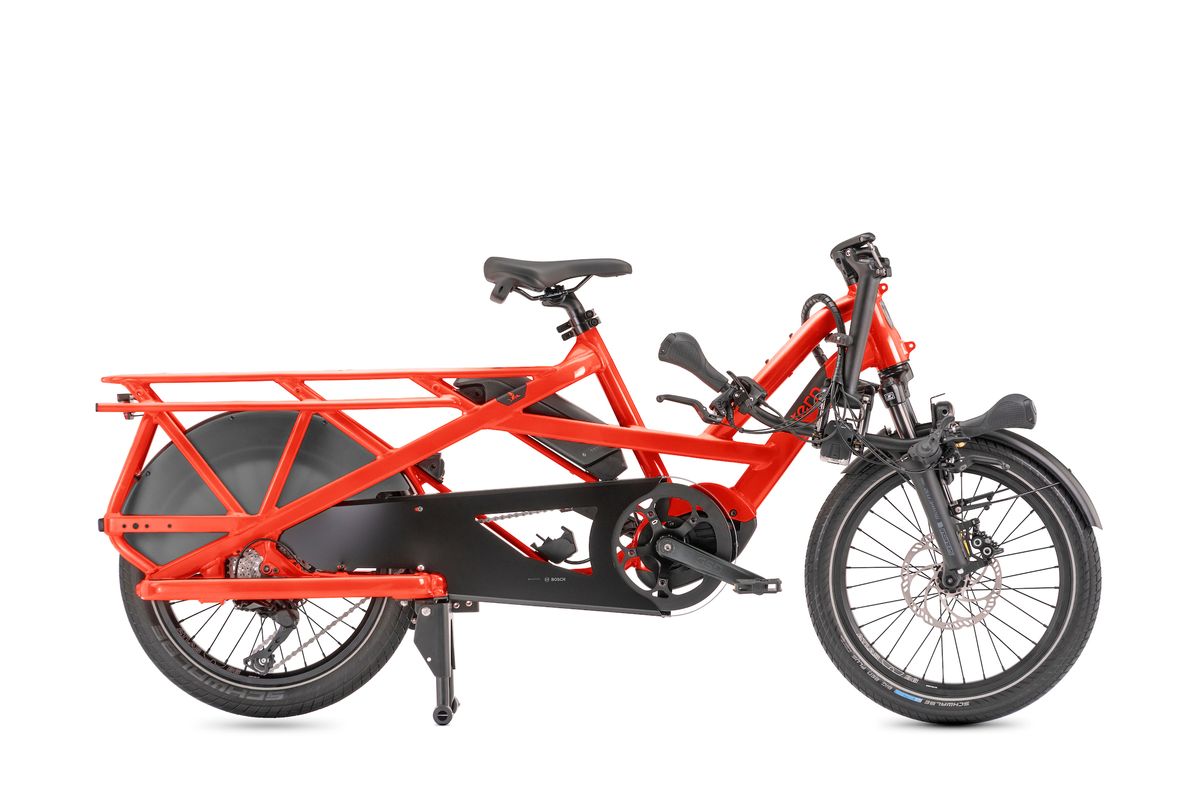

FOLDING SIZE 176 × 40.5 × 83 cm
FOLDING TIME 5 sec
FRAME SIZES One size
DISTANCE (SEATPOST TO HANDLEBAR) 49 - 59 cm
DISTANCE: SADDLE TO PEDAL 69 - 105 cm
SUGGESTED RIDER HEIGHT 150 - 195 cm
MAX GROSS VEHICLE WEIGHT 200 kg
MAX RIDER WEIGHT 120 kg

FRAME













FRAME Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
FORK Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg

COCKPIT





































HANDLEPOST Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
STEM Tern Andros, adjustable, forged construction, patented technology
HEADSET Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
HANDLEBAR Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE Ergon
SADDLE Tern GSD by Velo, with rear handle
SEATPOST Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP Tern Collar, 6061-AL, 2pc

BRAKES

















FRONT BRAKE Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
REAR BRAKE Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
BRAKE LEVERS Magura MT5 e-stop, hydraulic, with brake sensor

WHEELS

























FRONT HUB Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
REAR HUB Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
SPOKES AND NIPPLES Stainless steel, 13G
RIMS Tern Atlas, ultra wide 36 mm, dual reinforced joint
TIRES F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex

TRANSMISSION





































SHIFTER(S) Shimano Deore, 1 x 10 spd
REAR DERAILLEUR Shimano Deore Shadow+
CRANKSET Tern GSD custom, forged 6061-AL DH crankarm
CASSETTE/FREEWHEEL Shimano 11-36T, 10 spd
BOTTOM BRACKET Motor integrated
CHAIN 10 spd, DHT for eBike, GST corrosion resistant coating
PEDALS Urban with non-slip surface, sealed bearings
SHIFTER CABLE & HOUSING Jagwire LEX-SL, slick treatment, alloy ferrules

E-SYSTEM

























MOTOR Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 32km/h
BATTERY Bosch Dual Battery system, 400 Wh/900 Wh (extra 500Wh battery not included)
DISPLAY Bosch Purion, 4 mode selectable, walk assist
RANGE 400 Wh: 42-85 km; 900 Wh: 97-195 km
CHARGER 240V, 4A (AU/NZ)

BELLS & WHISTLES









































BELL Pitch Plus, brass
CHAINGUARD Tern Custom, full chain cover
KICKSTAND Atlas Lockstand, w/ remote unlock, patented technology
LUGGAGE SOCKET Combo Mount
FRONT LIGHT Tern Valo Direct, 190 lumens
REAR LIGHT RearStop Brake Light, Always on brake light
FENDERS Integrated Wheel Guard, AL6061, w/ Side Skirt
RACK(S) Frame integrated, heavy duty design; Max load weight: 100 kg
ACCESSORY ABUS, keyed-alike with Bosch battery




*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
