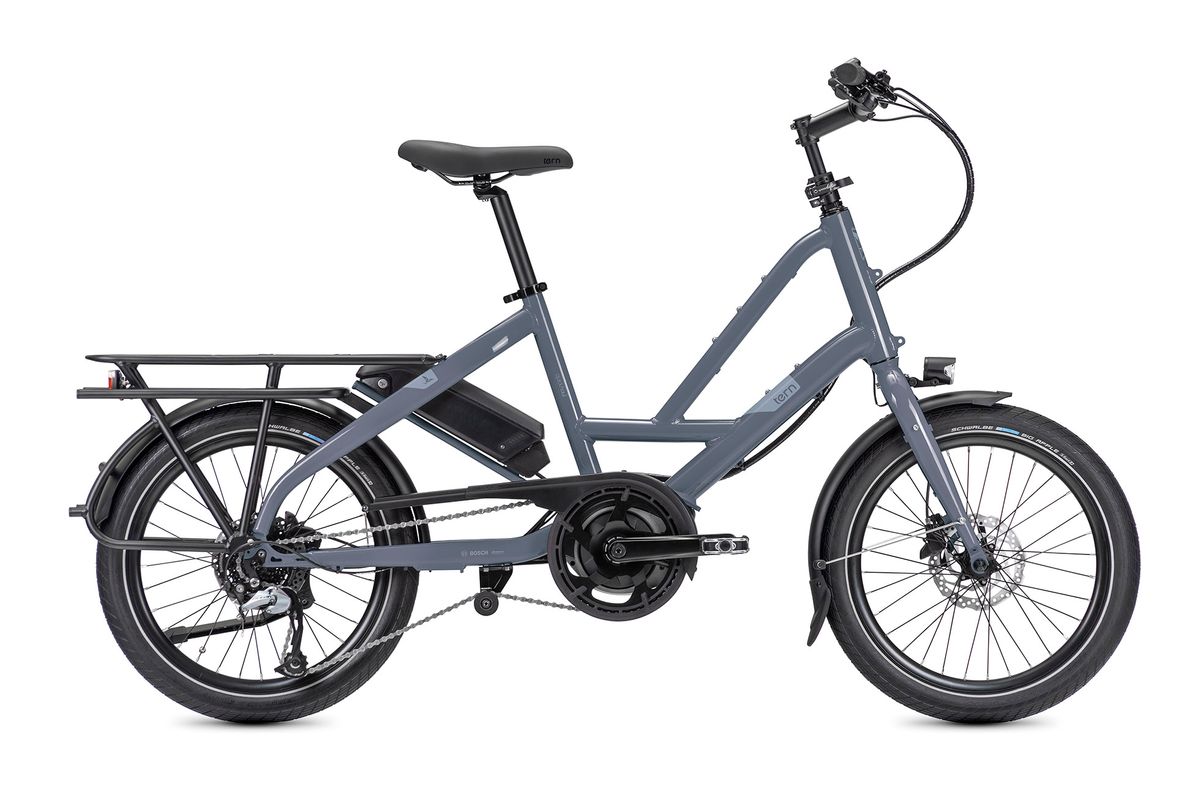

Tern Quick Haul D8 Bosch Active Line 32kph

$4,999.00 NZD
$4,999.00 NZD
Tax included.

SIMPLY CAPABLE


What Makes it a D8?

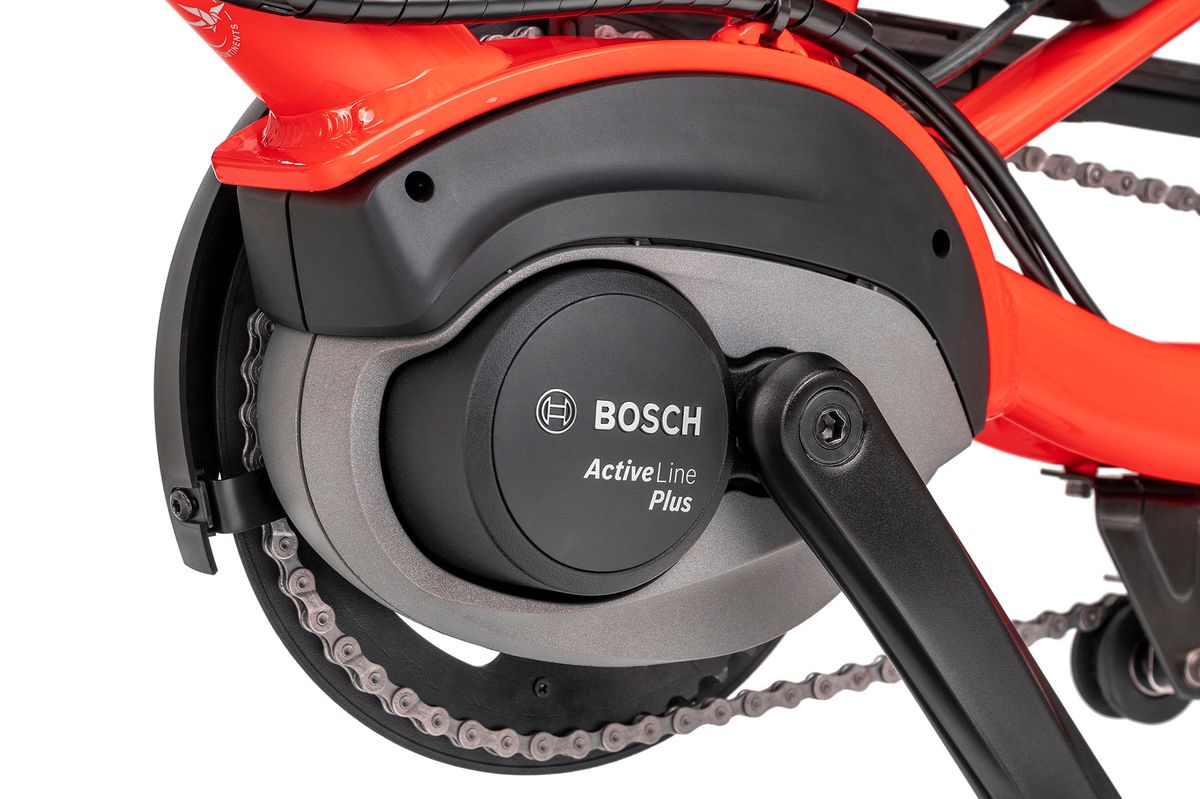

  • Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support

  • 1x8-speed Shimano Altus groupset with trigger shifter


Quick Haul Highlights



  • Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack

  • Fits riders 160 - 195 cm, and also riders 145 - 180 cm when equipped with a shorter, 350 mm seatpost

  • Lots of available kid- and cargo-carrying accessories—easily create your perfect setup

  • Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier

  • Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast

  • Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight




SPECIFICATIONS


GENERAL INFO









































SPEEDS 1 x 8
WEIGHT 22.8 kg
GEAR INCHES 2.45 - 7.57 m
FRAME SIZES One size
DISTANCE (SEATPOST TO HANDLEBAR) 60 - 64 cm
DISTANCE (SADDLE TO PEDAL) 68 - 110 cm
SUGGESTED RIDER HEIGHT 160 - 195 cm
MAX GROSS VEHICLE WEIGHT 150 kg
MAX RIDER WEIGHT 120 kg

FRAME













FRAME Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
FORK Cargo, steel, EFBE approved: 150 kg

COCKPIT

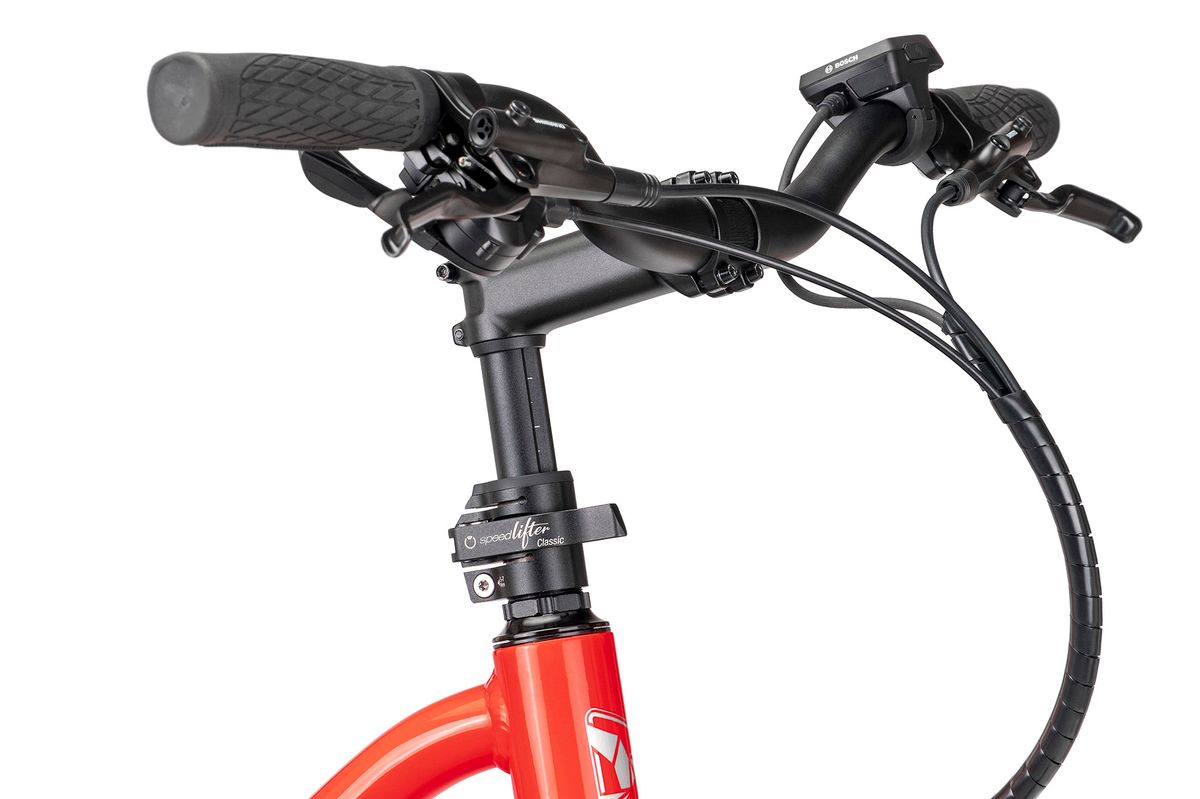

STEM Speedlifter, 150 mm extension, 3D Forged stem, 31.8
HEADSET TH, cartridge bearings

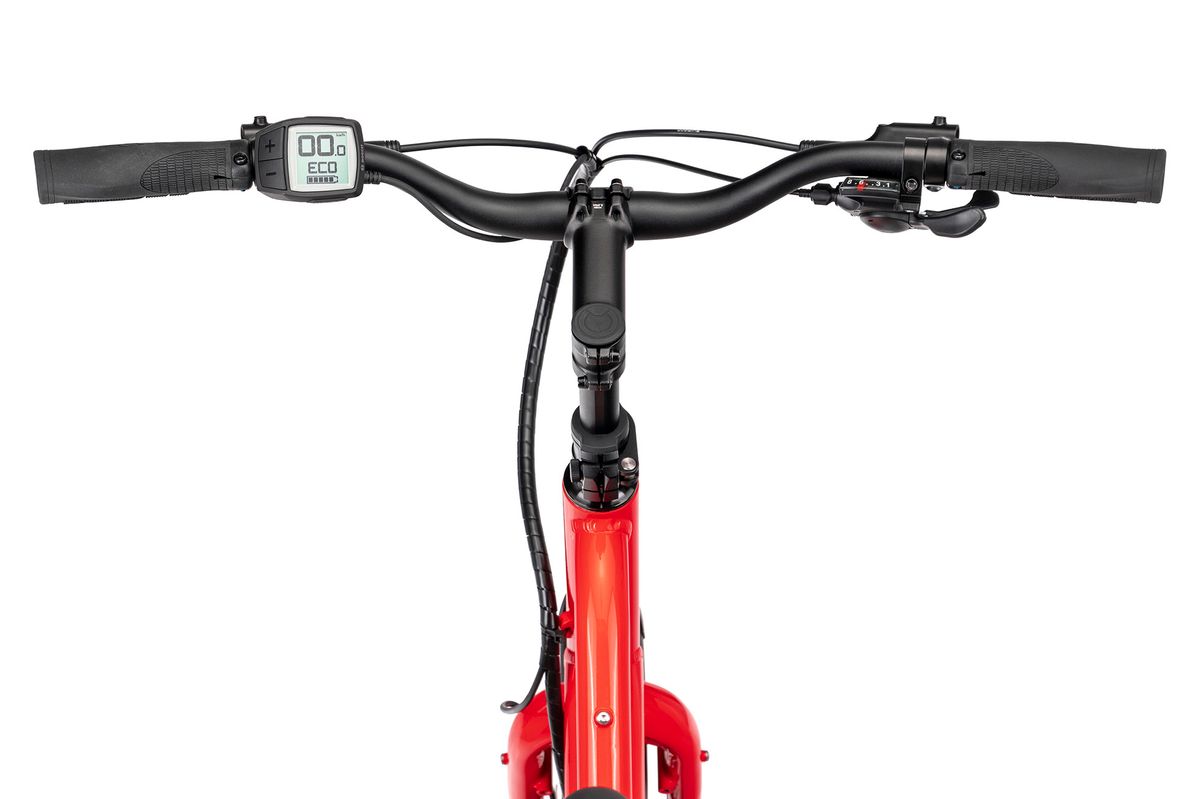

HANDLEBAR Low riser, 31.8, 6061-AL
GRIPS/BAR TAPE Velo ergonomic, lock-on
SADDLE Velo Comfort
SEATPOST 31.6 mm, 6061-AL, micro-adjust clamp
SEATPOST CLAMP Tern Collar

BRAKES





















FRONT BRAKE Shimano, hydraulic disc 180 mm
REAR BRAKE Shimano, hydraulic disc 160 mm
BRAKE LEVERS Shimano, hydraulic disc
BRAKE CABLE & HOUSING Shimano, hydraulic disc

WHEELS

























FRONT HUB Shimano disc
REAR HUB Shimano disc
SPOKES AND NIPPLES Stainless steel
RIMS Kinetix Comp, for disc
TIRES Schwalbe Big Apple, 55-406, puncture protection, Reflex

TRANSMISSION





































SHIFTER(S) Shimano Altus, 1 x 8 spd, trigger
REAR DERAILLEUR Shimano Altus Shadow
CRANKSET Tern custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL Shimano 11-34T, 8 spd
BOTTOM BRACKET Motor integrated
CHAIN KMC for eBike, 8 spd
PEDALS Urban with non-slip surface
SHIFTER CABLE & HOUSING SP

E-SYSTEM

























MOTOR Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 32 kph

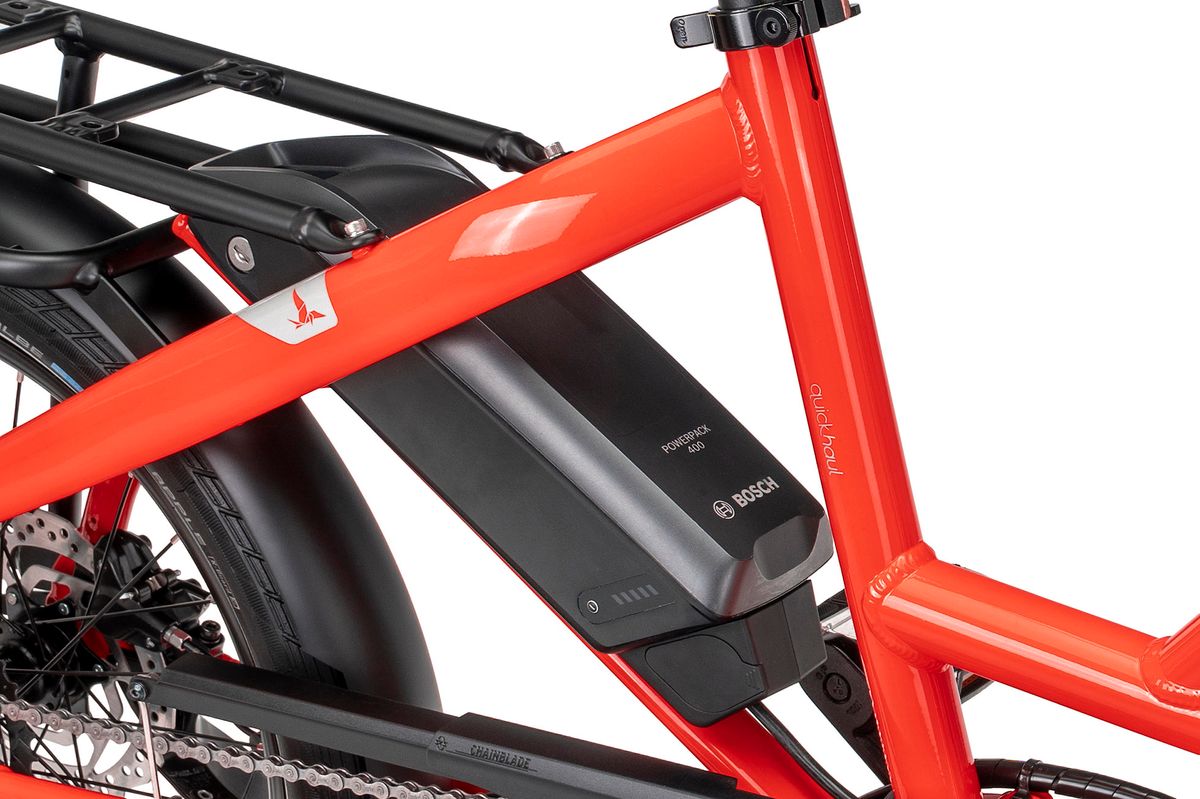

BATTERY Bosch PowerPack 400Wh

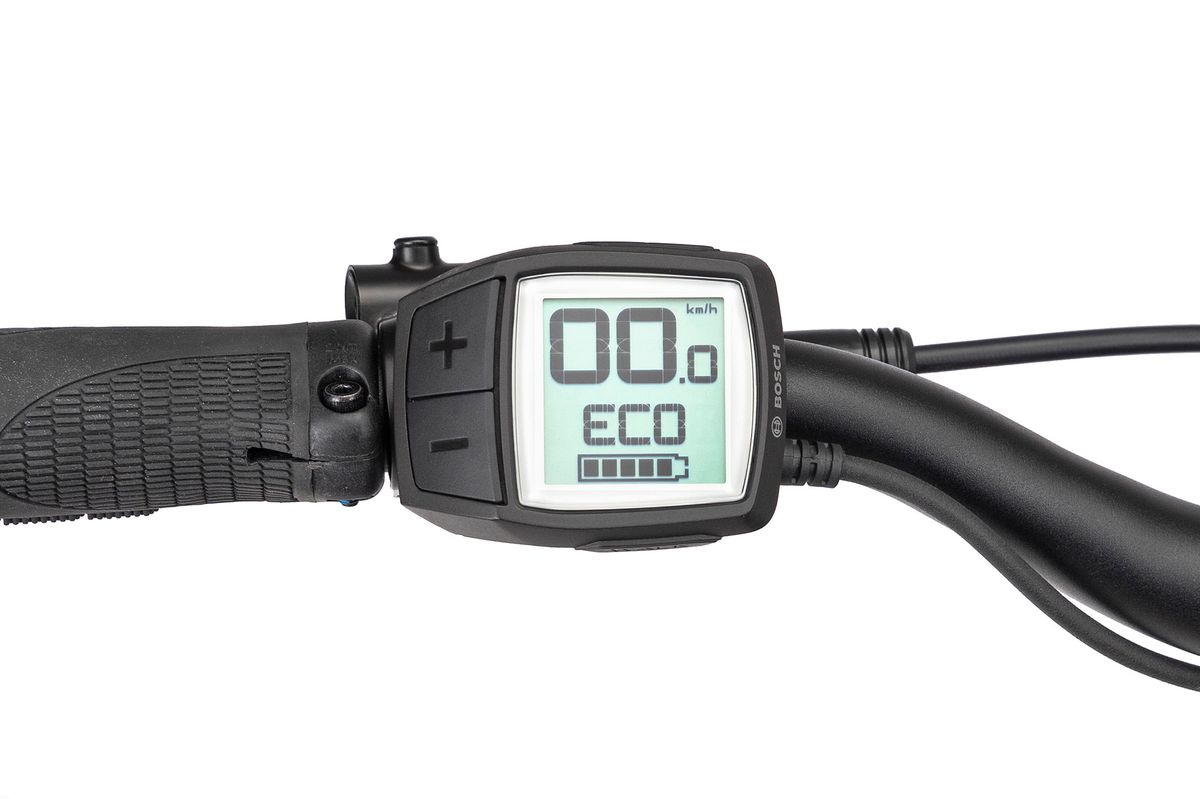

DISPLAY Bosch Purion
RANGE 400 Wh: 54 - 105 km
CHARGER Compact Charger, 100-240V, 2A

BELLS & WHISTLES





































BELL Aluminum
CHAINGUARD SKS Chainblade
KICKSTAND Pletscher design, rear mount

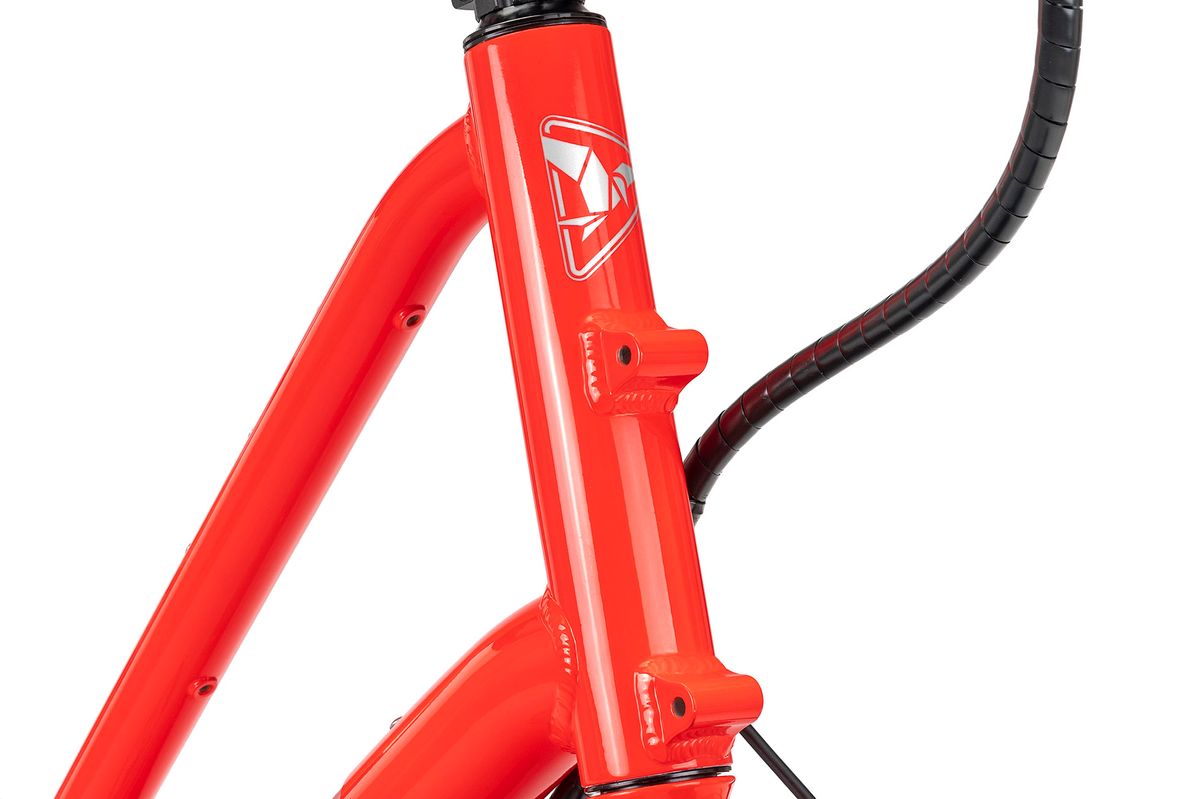

LUGGAGE SOCKET Combo Mount

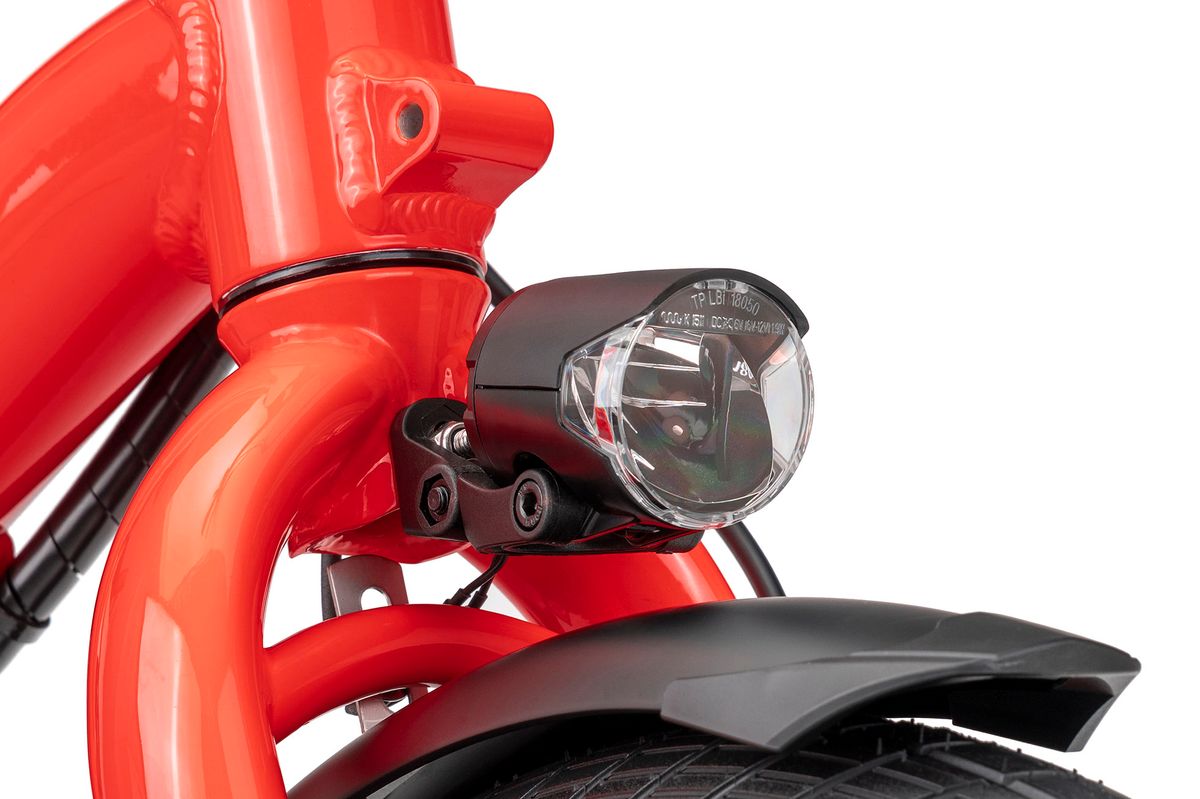

FRONT LIGHT Herrmans, 120 lumens
REAR LIGHT Herrmans
FENDERS Chromeplastic, stainless hardware

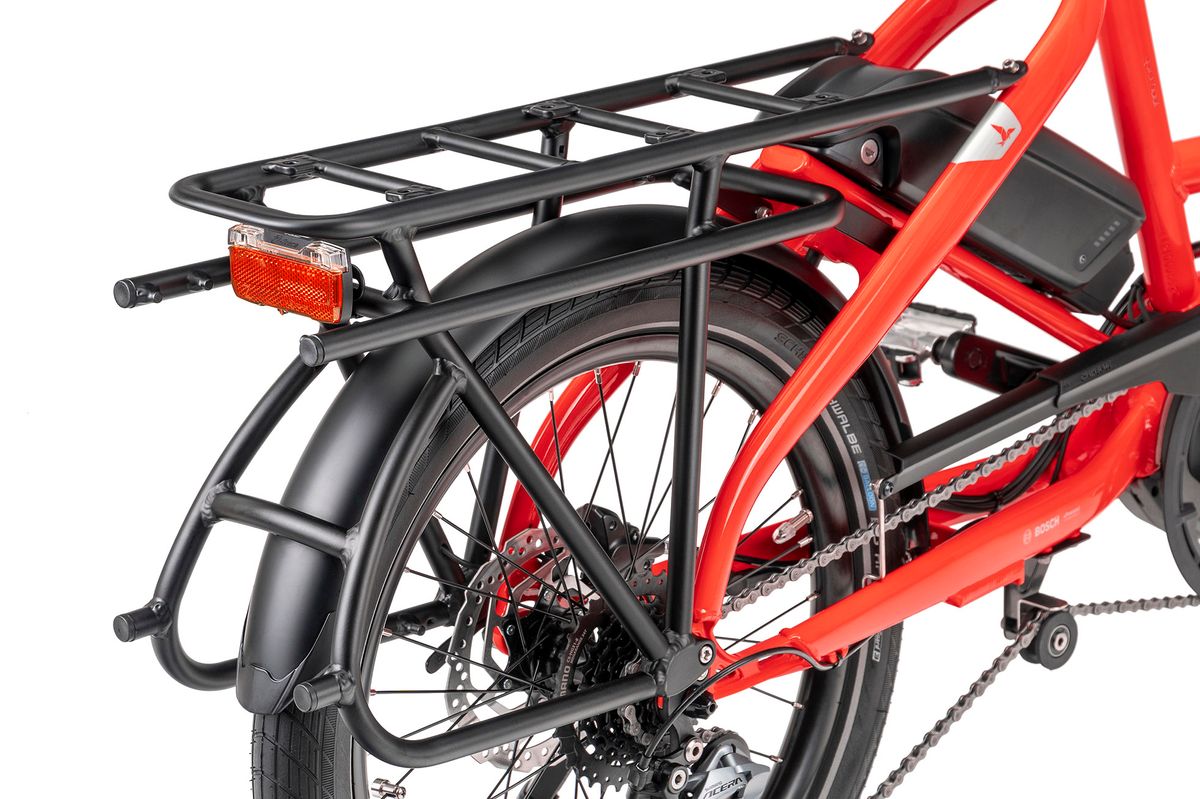

RACK(S) Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity




*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
